# ARROW Front Bump Stop Kit Installation
## How to install the ARROW Front Bump Stop Kit on your 2015+ AWD or 4x4 Mercedes Sprinter.
### [PDF Version](https://ready.owlvans.com/hubfs/ARROW%20Installation%20Guides/ARROW%20Bump%20Stop%20Installation.pdf?hsLang=en-us)
### Notes
For the most up-to-date and current installation
instructions, please visit our website at
www.owlvans.com
• Please read all instructions carefully before installing
Owl products on your vehicle.
• This is a bolt-on kit designed for easy installation
using basic hand tools.
• This kit is fully removable, allowing the vehicle to be
returned to its original stock configuration if desired.
---
### Parts List
**2015-Up, Mercedes Sprinter 4x4, AWD Bump Stops**
| Part | P/N | QTY. | ✔ |
| --- | --- | --- | --- |
| MERCEDES SPRINTER 4x4 / AWD, BUMP STOP | SP-BUMP-FSTD | 2 | |
| M8-1.25 X 20MM LONG HEX HEAD BOLT | | 2 | |
| M8 FLAT WASHER, CLEAR ZINC | | 2 | |
| BLUE LOCTITE, 2ML TUBE | | 1 | |
---
### Tools Needed
**1.** Quality jack and two jack stands
**2.** Basic hand tools:
• Wrench and socket set, including:
• Metric sizes: 13mm
**3.** Torque wrench (Final torque: 15 ft-lbs)
---
### Installation
These instructions show installation on the driver’s (left-hand)
side. Passenger side installation is similar; any differences will
be noted in the steps.
**1.**
Loosen lug bolts then safely support the vehicle on an
appropriate lift or jack stands so the front suspension can
hang freely. Ensure the support method follows the vehicle
manufacturer’s specifications.
**2.**
With the suspension supported, remove the front wheels and
tires. Factory lug bolts typically have a 19mm head.
**3.**

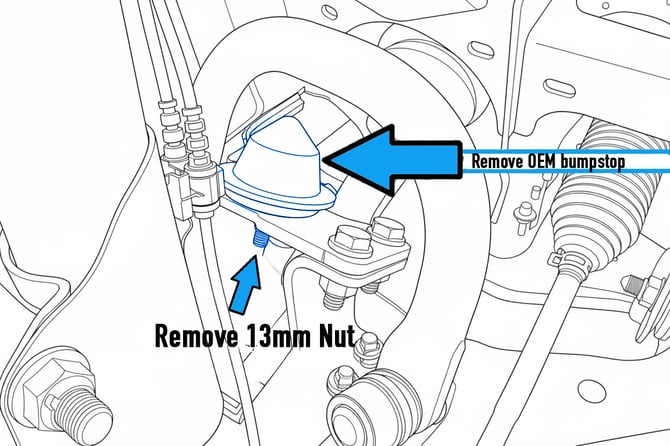

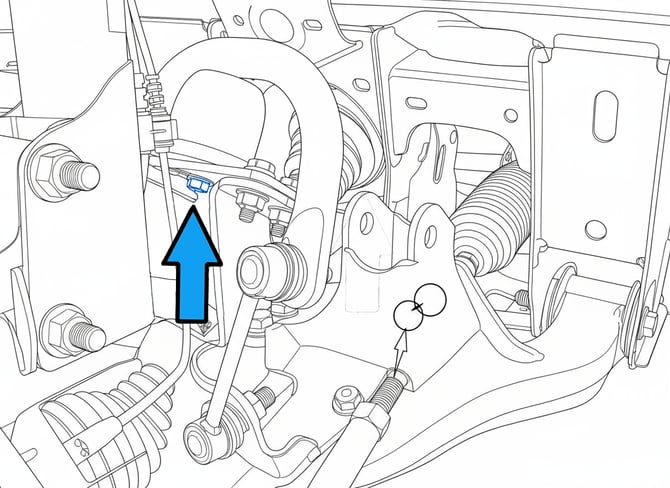

Locate the **OEM front bump stop**, which is secured to the
chassis with a **13mm nut**. Remove the nut using a **13mm**
**socket or ratcheting wrench**, then detach the bump stop
from the chassis. Retain the hardware for potential
reinstallation.
**4.**
Install the **new Bump Stop** into the same chassis location
where the factory bump stop was removed.
a. Note: Two mounting holes are present in the chassis. **Use the outer hole** (the one closest to the tire) for correct alignment.
b. Place the **supplied washer** under the head of the bolt.
c. Secure the Bump Stop using the **included M8-1.25 x 20mm hex head bolt**. Apply a small amount of **blue Loctite® (medium strength)** to the bolt threads before installation.
d. Torque the bolt to **15 ft-lbs (20 N·m)** using a **13mm socket**.
Repeat the process on the **passenger side** of the vehicle.
---
### Congrats! Your Installation is complete.
---
