ARROW Rear Adjustable Shocks Installation



Notes

For the most up-to-date and current installation
instructions, please visit our website at
www.owlvans.com

• Please read all instructions carefully before installing Owl
products on your vehicle.

• This is a bolt-on shock kit designed for easy installation using
basic hand tools.

• The Owl Tuned Falcon Rear Shock Package can be installed with
the vehicle on the ground at ride height. However, for a
smoother, single-person installation, it’s recommended to
unload the suspension by lifting the vehicle so the rear axle
hangs freely. This provides easier access to the shock mounts
and hardware.

• The mode adjust feature on the Owl Tuned Falcon Shocks allows
the installer to select the base shock tune best suited for the
vehicle’s setup and driving style. The recommended settings
outlined in this guide are based on vehicle weight ranges, but
they can be adjusted later to match driver preference or specific
use conditions.

• Each Owl-Tuned Falcon Shock features a proprietary internal
damping tune, developed in collaboration between Owl
Engineering and Falcon, specifically optimized for the
Mercedes-Benz Sprinter platform. This tune delivers exceptional
ride quality and control across all road and terrain conditions.

• Each Owl Tuned Falcon Shock features an internal bypass valve
(free-bleed circuit) that allows fine-tuning of the shock’s baseline
compression characteristics. This adjustment is made by rotating
the shock shaft—only when the shock is fully extended—to ensure
proper internal alignment and prevent damage to the valve
assembly.

• When rotating the shock shaft, you will feel a distinct change in
resistance as the internal mode switches. To ensure the shock is
fully engaged in the desired mode, rotate the shaft at least 360°
in one continuous direction. This guarantees the correct mode
selection and proper internal valve positioning.

• The Owl Tuned Falcon Shocks are equipped with a Fast Adjust
Knob, providing a wide range of compression damping
adjustment. This allows drivers to fine-tune ride quality for any
terrain or load condition.

• This shock kit is fully removable, allowing the vehicle to be
returned to its original stock configuration if desired.

---

Parts List

2007-Up, Mercedes Sprinter 4x4, AWD Fast Adjust Rear Shocks Mid

OR

2007-Up, Mercedes Sprinter 4x4, AWD Fast Adjust Rear Shocks HD



Tools Needed

1. Quality jack and two jack stands

2. Basic hand tools:

• Wrench and socket set, including:
• Metric sizes: 18mm, 21mm

---

Installation

These instructions show installation on the driver’s (left-hand)
side. Passenger side installation is similar; any differences will
be noted in the steps.

1.
Raise the rear of the van using a floor jack positioned under
the rear hitch to allow the rear suspension to fully droop.
Remove the factory rear shocks using an 18mm socket or
wrench for the lower bolt and a 21mm socket or wrench
for the upper bolt. Retain all hardware for reinstallation.

2.
The Owl Tuned Falcon Shocks are side-specific. Verify
orientation by checking the part number etched on the shock
body to ensure each shock is installed on the correct side of
the vehicle — Driver (Left) or Passenger (Right).

3.
Install the Owl Tuned Falcon Shock into the upper shock
mount using the factory bolt. Apply a small dab of red
Loctite to the threads of the upper bolt before installation to
ensure secure retention under vibration and load.

4.

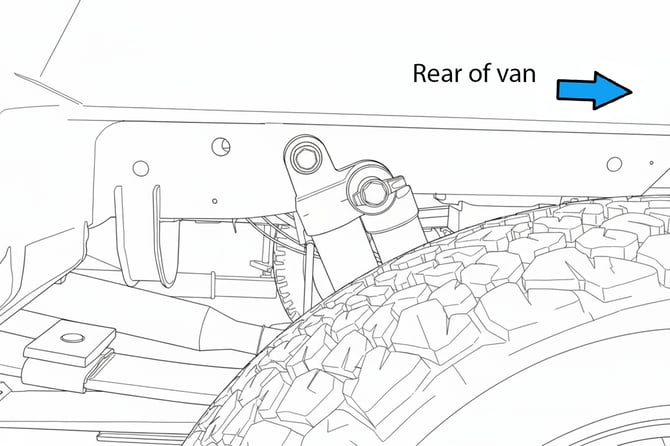

Position the shock body so the reservoir faces the rear of
the vehicle and the adjuster knob faces outward for
accessibility. Once properly oriented, torque the upper shock
bolt to 100 ft-lbs (108 N·m).

5.
With the upper shock bolt secured, ensure the shock shaft is
fully extended. Adjust the SP2 internal mode by rotating the
shock shaft 360°.

6.
Rotate the lower shock eyelet in the same direction used
during the SP2 adjustment to align it with the lower shock
mount.

⚠️ Important: Rotating the eyelet in the opposite direction may change the internal mode setting,
requiring readjustment.

7.
Install the OEM lower shock bolt through the lower mount
and torque to 60 ft-lbs (81 N·m). Confirm the shock is
seated correctly and the bushing is not twisted before
tightening.

8.
Set the large red Fast Adjust Knob to your desired
compression setting. Begin with Position 1, which provides
the lightest and softest ride.

• Position 2 — Tunable Mode: Enables use of the black micro dial for precision tuning based on vehicle weight and driver preference. This is the recommended starting point for on-road
optimization. The micro dial offers 8 fine adjustment levels—experiment to find the ideal
balance for your driving style.
• Position 3 — Firm Mode: Provides the firmest compression setting, ideal for high crosswinds, mountain driving, or when carrying heavy loads or towing.
• Note: All settings are driver-adjustable. Fine-tune as needed to achieve your ideal ride quality and make the most of your Owl Tuned Falcon Shock System.

9.
Check shock clearance after lowering the vehicle.

10.
After 100 miles, recheck bolt torques.

---

Congrats!
Your Installation is complete.

---
