PDF Version
Notes
For the most up-to-date and current installation
instructions, please visit our website at
www.owlvans.com
• Please read all instructions carefully before installing
Owl products on your vehicle.
• Use the photos throughout this guide to confirm bracket orientation and placement.
CAUTION: Wear safety glasses when drilling. Treat all drilled metal surfaces with rust-preventive paint before installing rivet nuts or hardware.
Parts List
Owl Ladder Tire Carrier
| Part | P/N | QTY. | ✔ |
| Inner hinge upper (owl eyes) | Z DR-110 | 1 | |
| Steel hoop PC | PC OV-004 | 1 | |
| Inner hinge lower plate | Z DR-111 | 1 | |
| Step drill bit | Step Drill Bit | 1 | |
| Rubber wheel puck 2500 | OV-200 | 1 | |
| Plastic pry bar | Plastic Pry Bar | 1 | |
| Owl handle | PC OWL-Handle | 1 | |
| LTC Foot peg set | Foot Peg | 2 | |
| Driver door plate with VHB | PC DP-106+VHB | 1 |
Hardware Kit
| Part | Bag | QTY. | ✔ |
| 3/8-16 x 1.25” Button head bolt | A1 Bag Hardware Kit | 4 | |
| 3/8 Washers | A1 Bag Hardware Kit | 4 | |
| 3/8-16 Nylock nuts | A1 Bag Hardware Kit | 4 | |
| Loctite | E1 Bag | 1 | |
| Plastic tube cover | E1 Bag | 1 | |
| Small bushing | E1 Bag | 1 | |
| 3/8-16 x 2.5” Button head bolt | E1 Bag 2 | 2 | |
| 3/8 Flat washers | E1 Bag 2 | 4 | |
| 3/8-16 Nylock nut | E1 Bag 2 | 2 | |
| 18-8 Stainless black zinc 5/8-11” *11.75” hex head bolt with hole | All Threads | 1 | |
| 5/8 lock washer | All Threads | 1 | |
| 5/8 flat washer | All Threads | 1 | |
| 5/8 nut | All Threads | 1 |
Tools Needed
1. Rear-door mounting template
2. Center punch and hammer
3. Drill and 3/8-inch drill bit
4. Step drill bit
5. Basic hand tools:
• Impact wrench or driver
• 1/4" and 3/8" drive ratchets
• Sockets: 9/16"
• Allen/hex bits: 7/32"
6. Torque wrench
7. Masking tape
8. Rust-preventive touch-up paint, such as Rust-Oleum
9. Alignment tool or screwdriver
10. Anti-seize compound
11. Medium-strength threadlocker
12. Foam or tape, optional for retaining hinge bolts during installation
13. 24mm Box-end wrench
Torque Specifications
| Fastener Size | Final Torque |
| 1/4-20 hardware | 75 in-lb (6.25 ft-lb) |
| 5/16-18 hardware | 132 in-lb (11 ft-lb) |
| 3/8-16 hardware | 236 in-lb (19.67 ft-lb) |
NOTICE: Do not apply final torque until the LTC has been positioned, leveled, and all brackets are correctly aligned.
Installation
Driver side Installation
Prepare the Vehicle
- Park the vehicle on a flat, level surface. Apply the parking brake
- Remove all components from the packaging.
- Separate the brackets and hardware by type, then verify that all kit components are present before starting installation.
Locate the Front Bracket

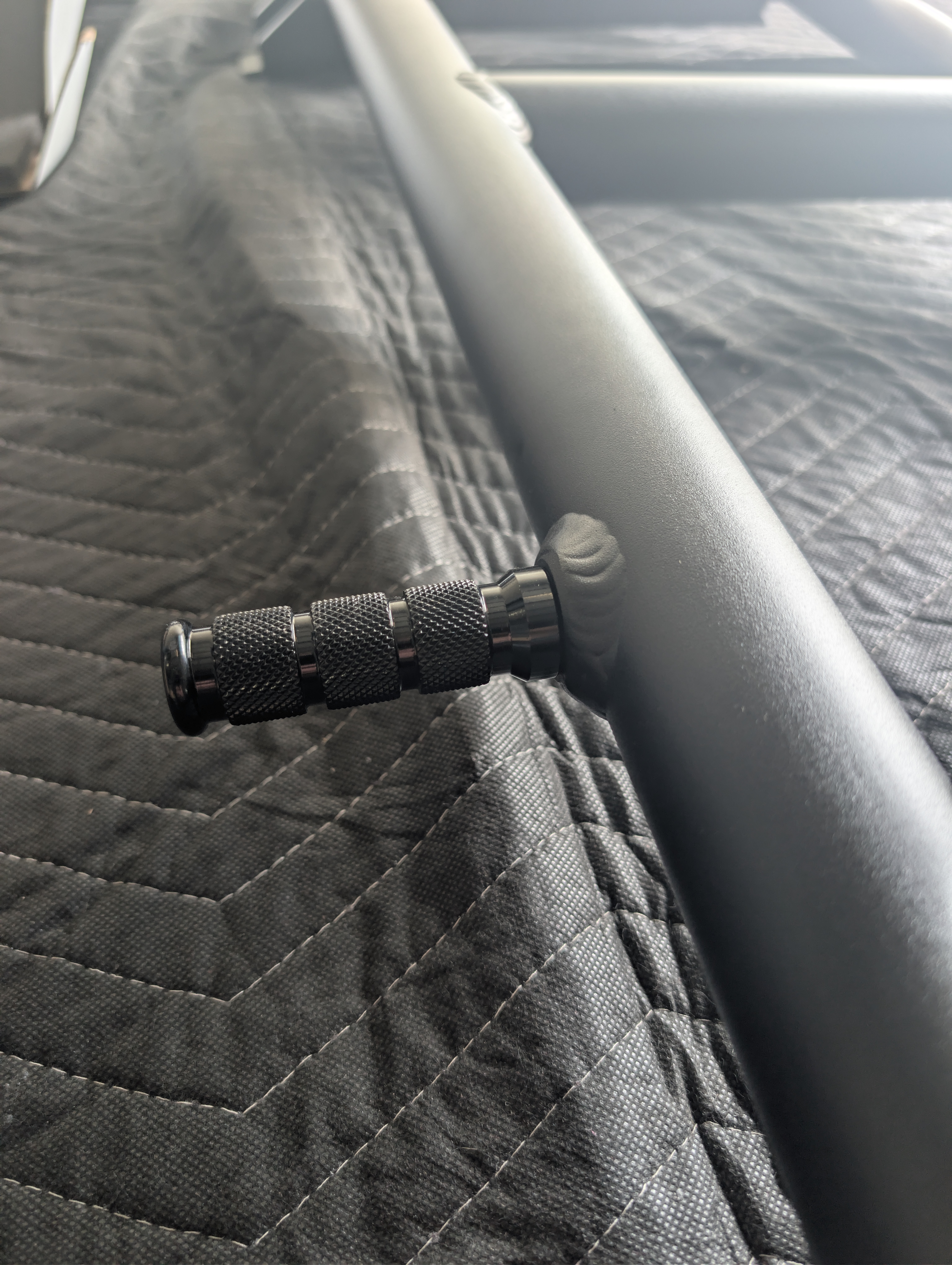

- Apply medium-strength threadlocker to the foot-peg fasteners.
Install the foot pegs into the LTC by hand and tighten securely.

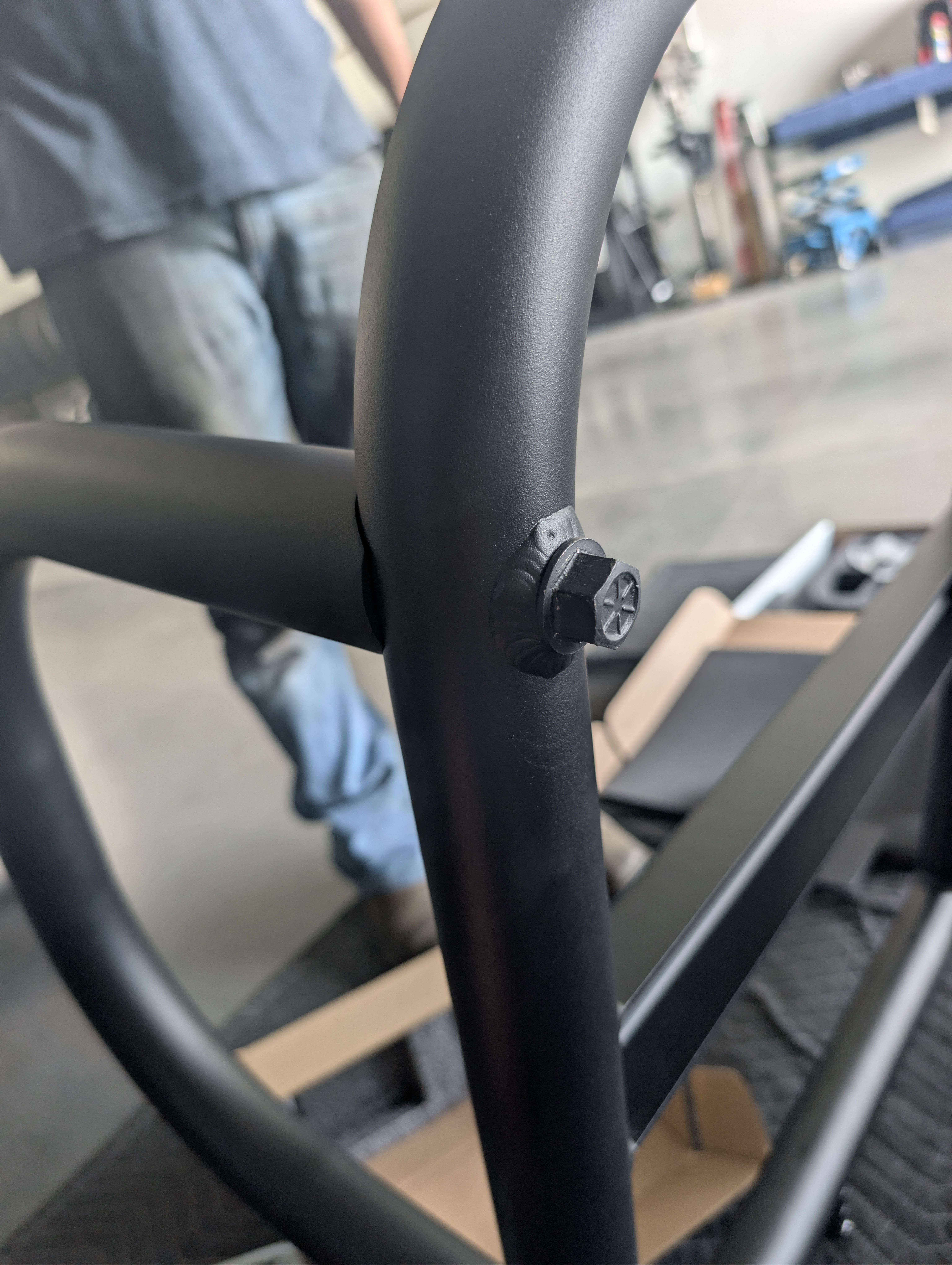

- Apply medium-strength threadlocker to the tire-hoop mounting bolts.
Position the tire hoop on the LTC and install all mounting bolts. - Using a 19 mm socket and 3/8-inch-drive ratchet, torque the tire-hoop mounting bolts to
50 ft-lb.
Prepare the third mounting point

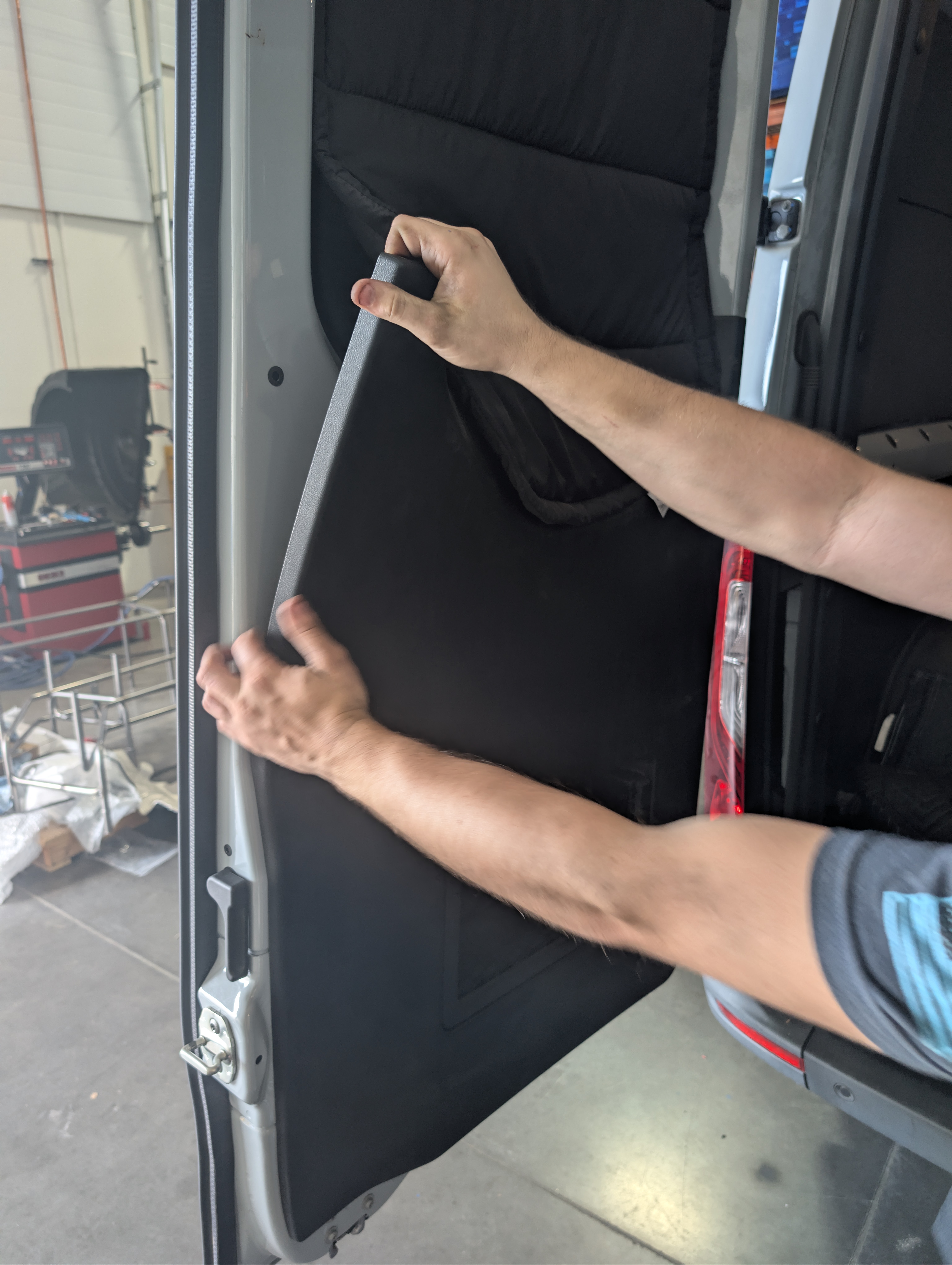

- Remove the driver-side rear interior door panel.

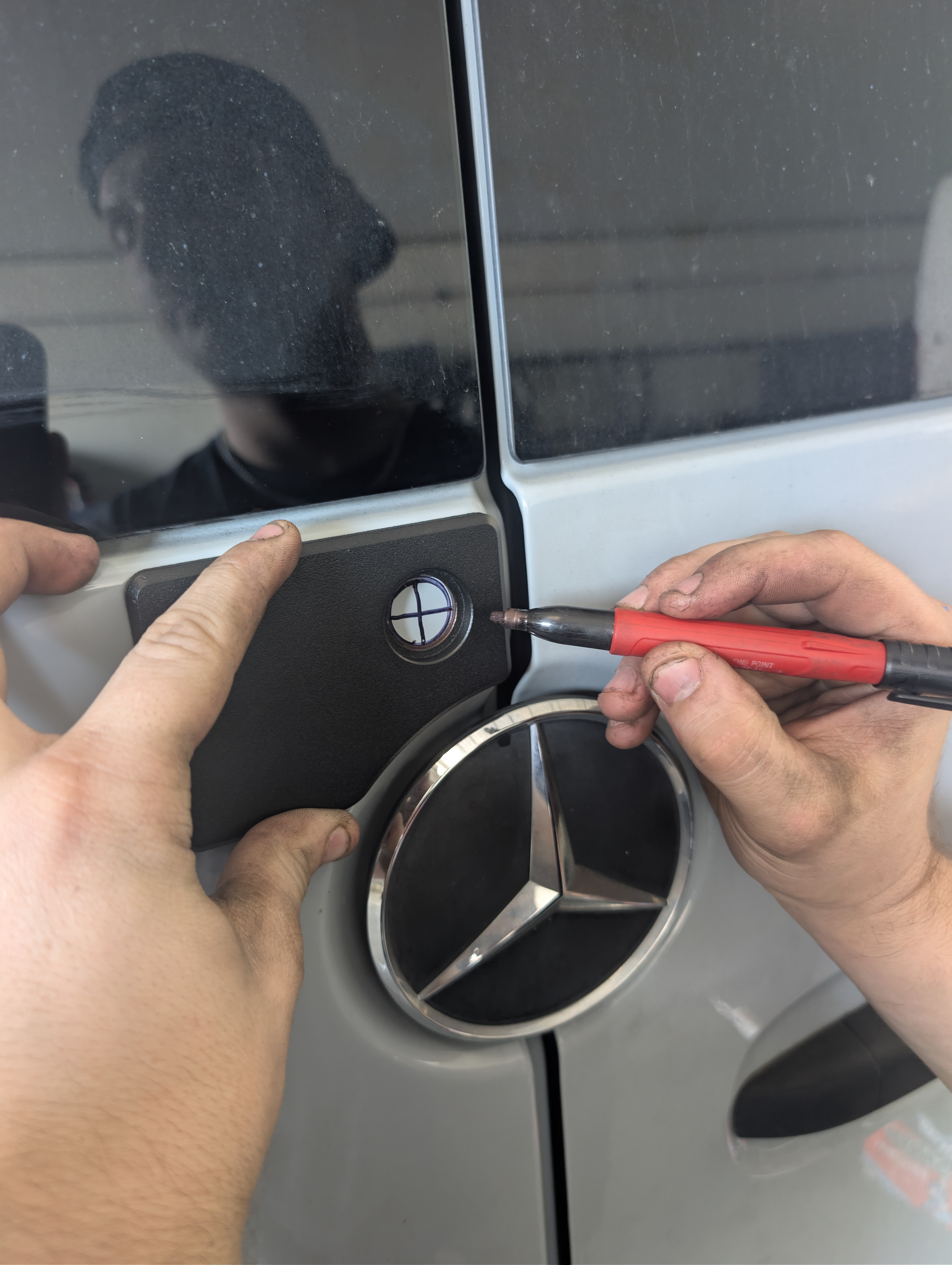

- Position the supplied template on the rear door and mark the location of the third mounting-
point hole.

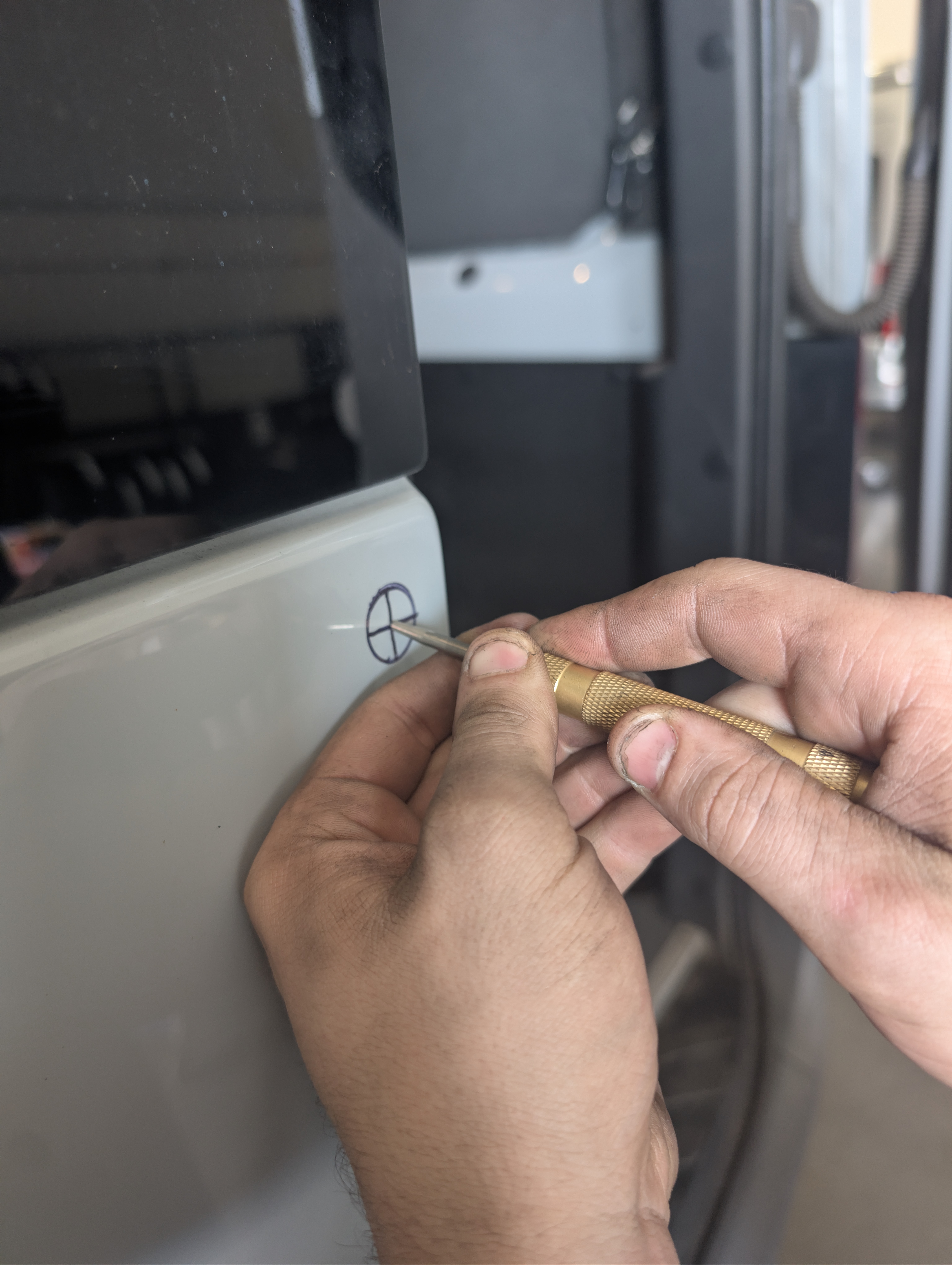

- Verify the marked location, then use a center punch to create a drilling pilot point.
- Drill through the marked location using a 3/8-inch drill bit.

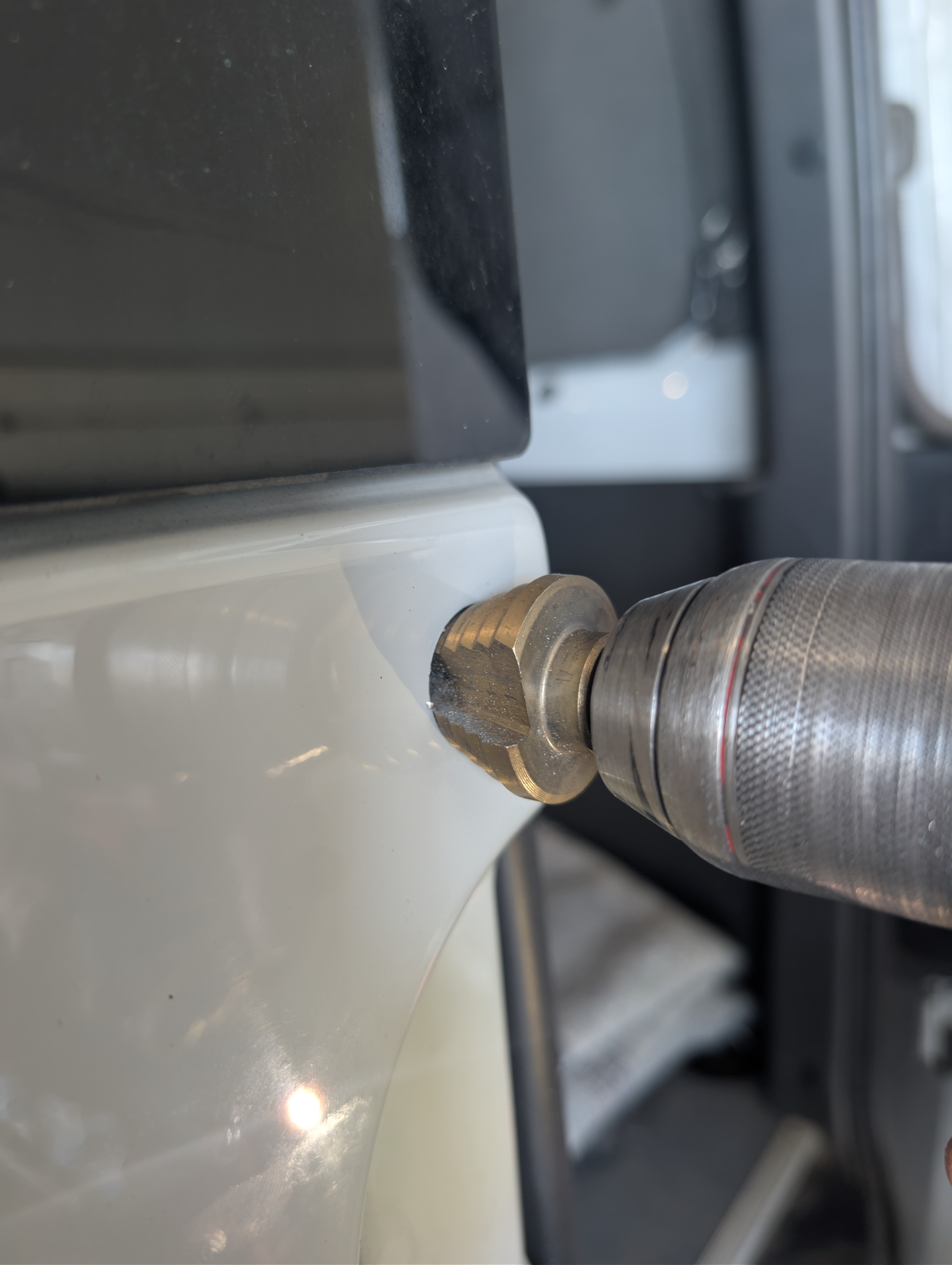

Depending on the van model, the drill may pass through two or three layers of door metal. - Use a step drill bit to enlarge only the outer hole to approximately 7/8 inch, allowing the
third mounting-point bushing to seat fully.
- Mask the drilled area and apply rust-preventive paint to all exposed metal surfaces,
including the inside and outside edges of the hole.
Allow the paint to dry completely before proceeding.

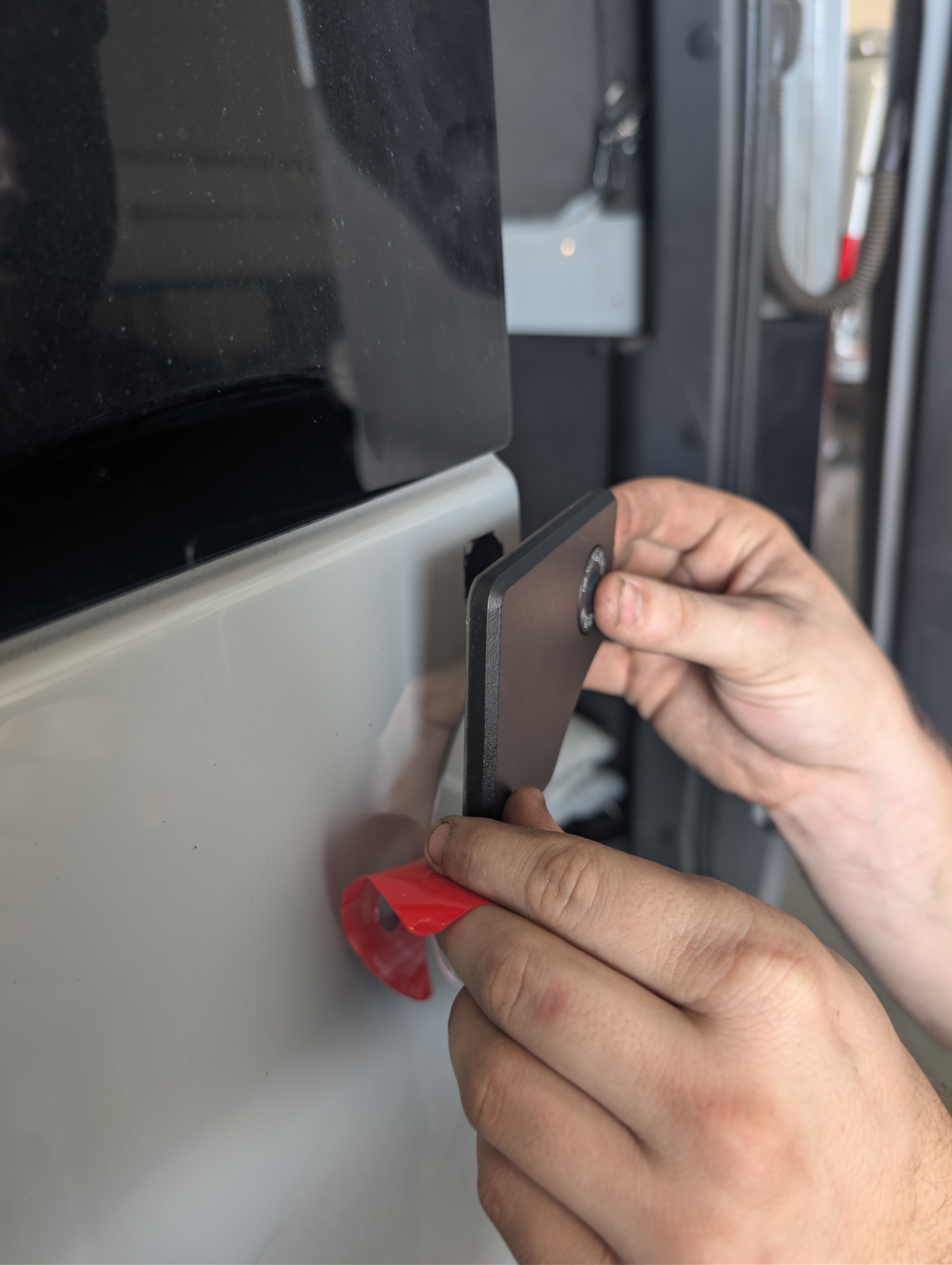

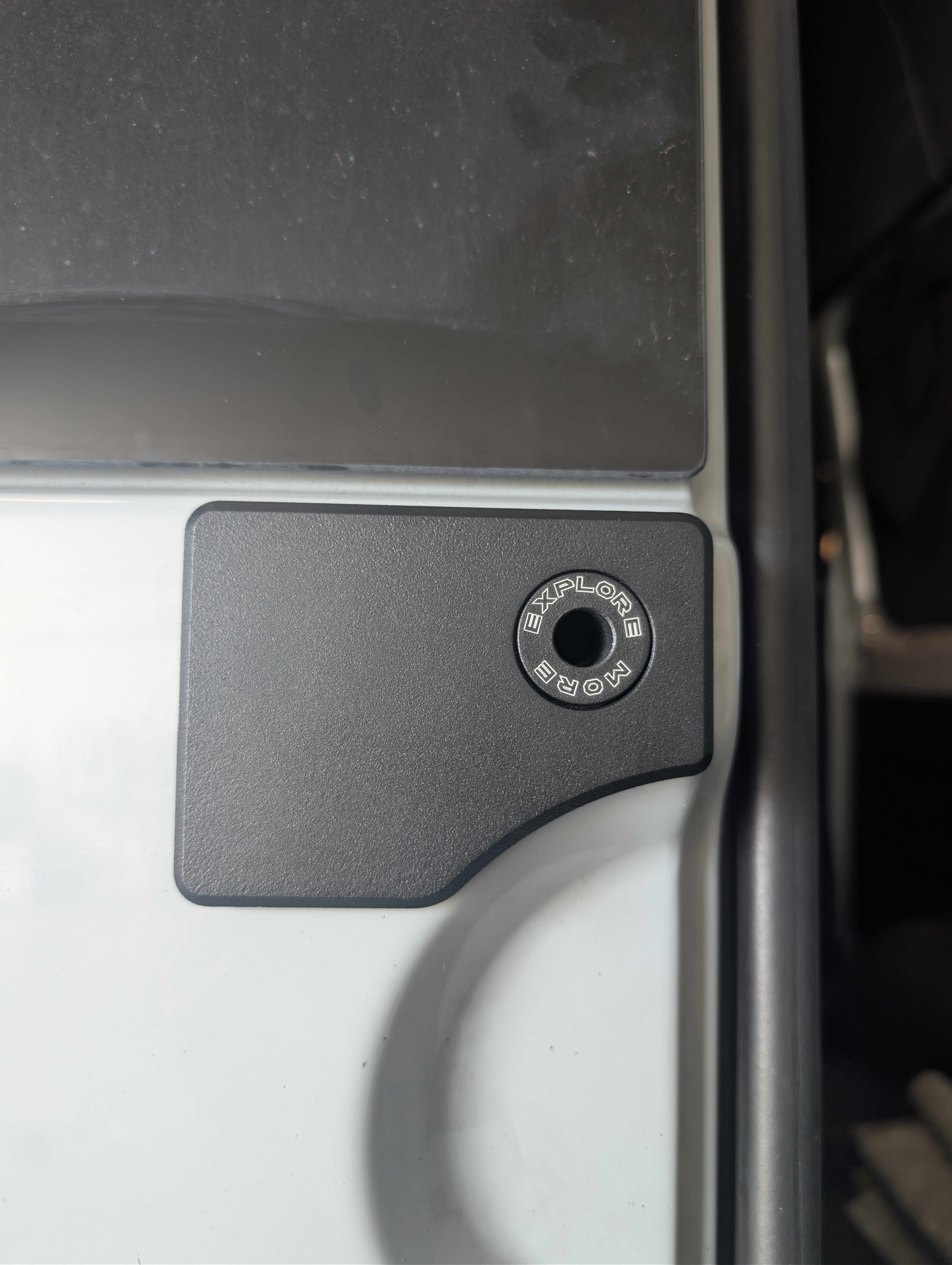

- Remove the 3M adhesive backing from the third mounting-point plate.
Align the plate with the door/window body line and press firmly into place.

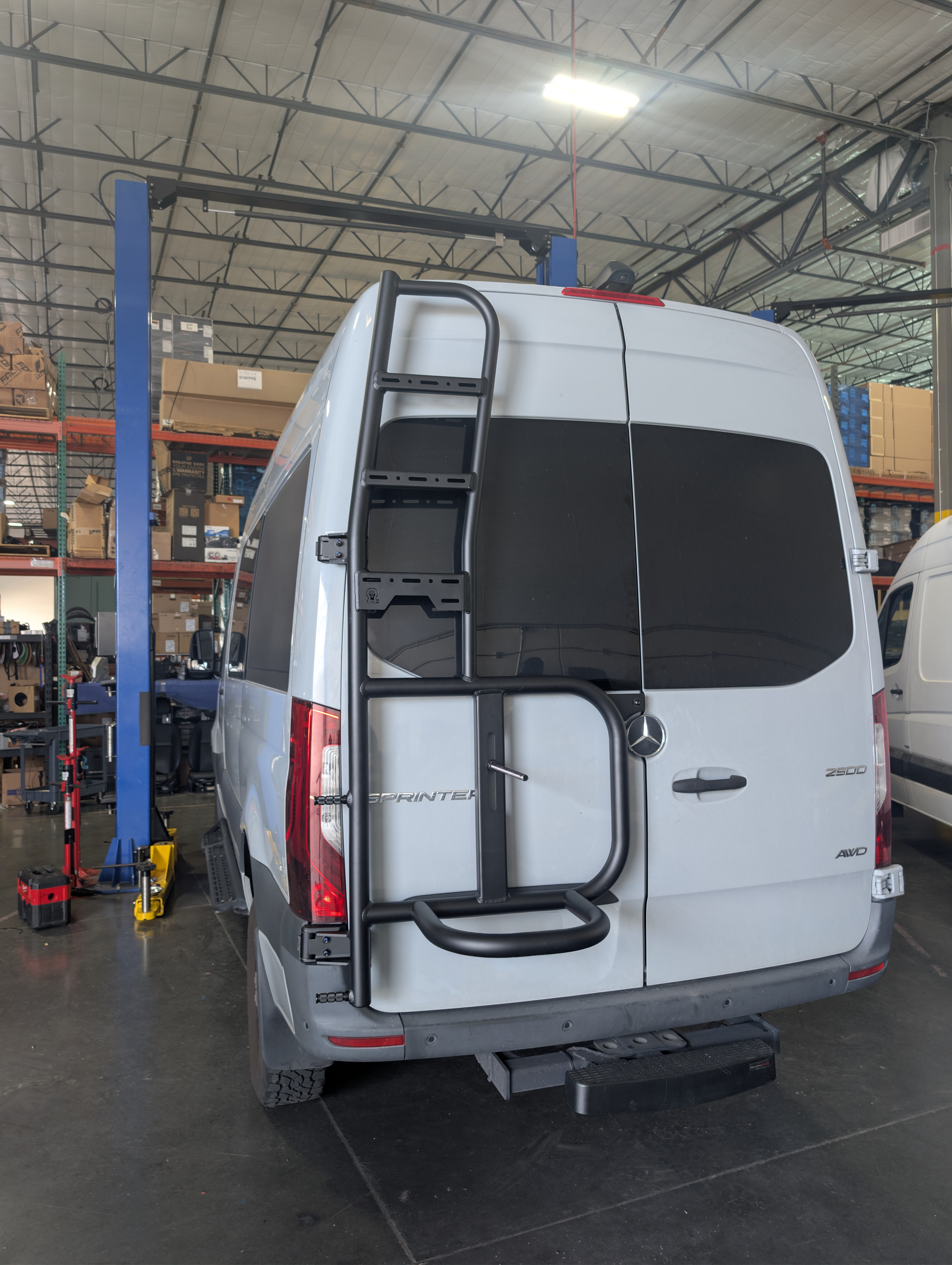

Install the lTC carrier

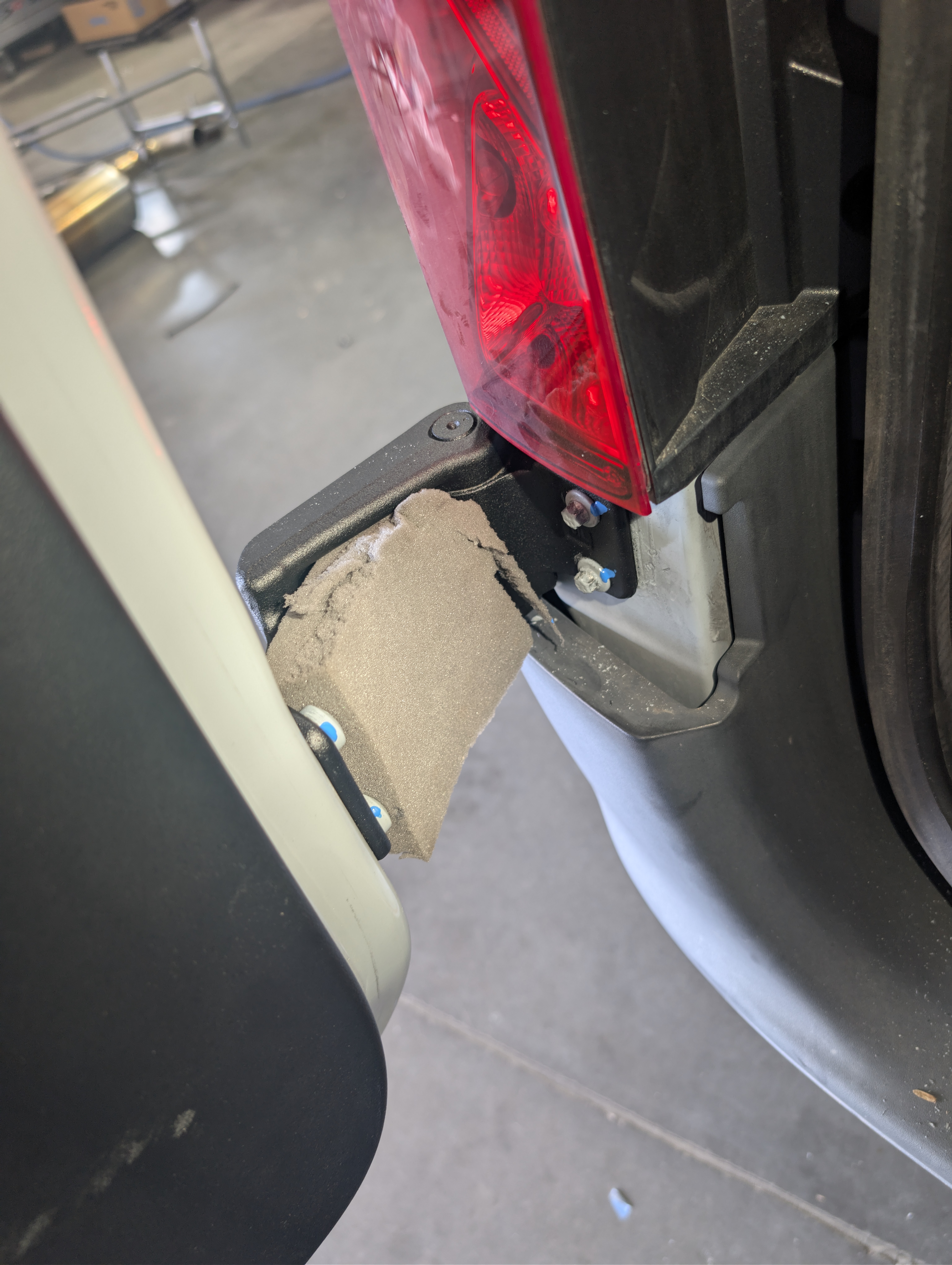

- Install the first and second mounting-point brackets into the OWL 180 hinge assemblies.

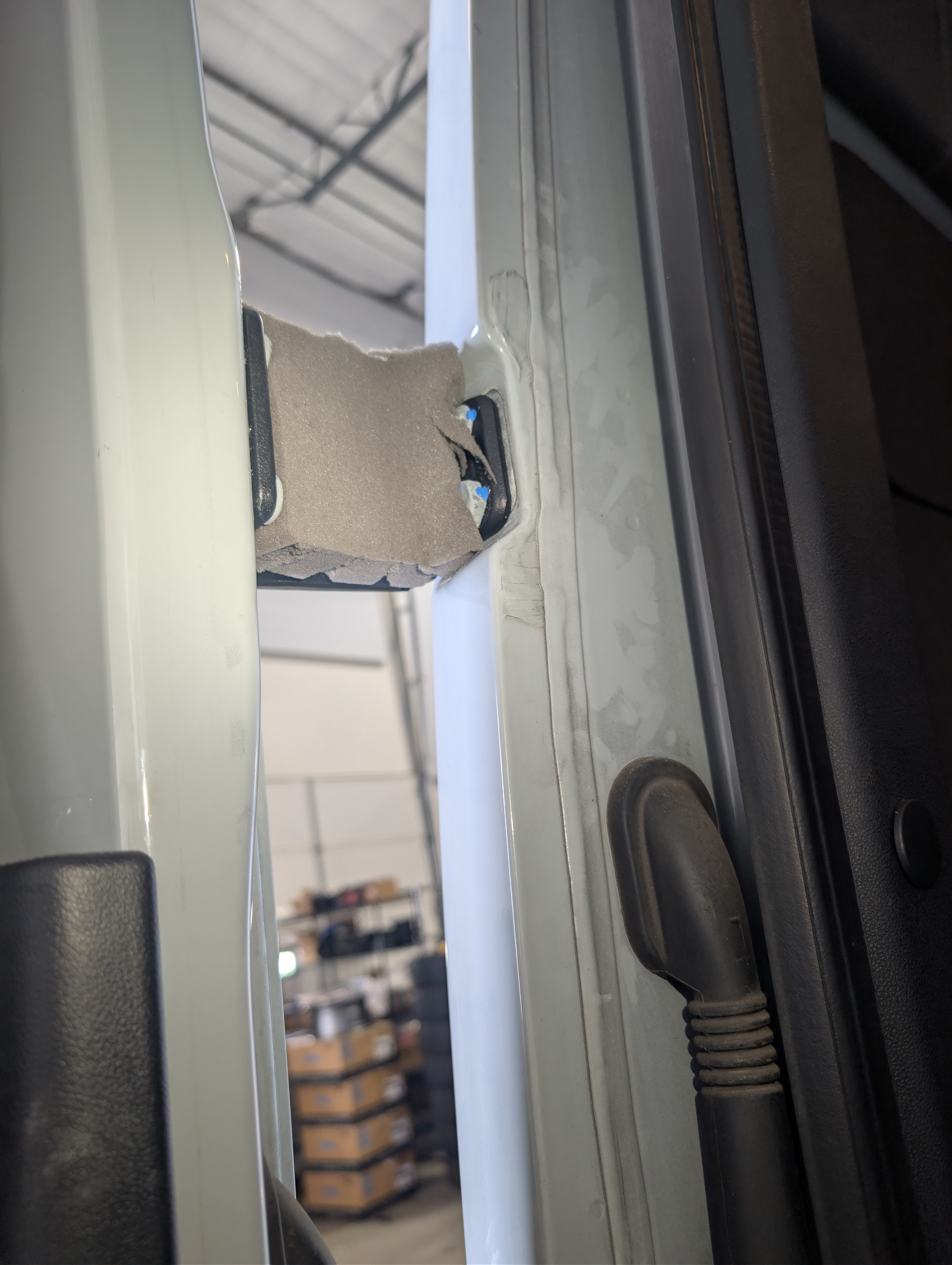

Foam or tape may be used to retain the bolts during assembly.

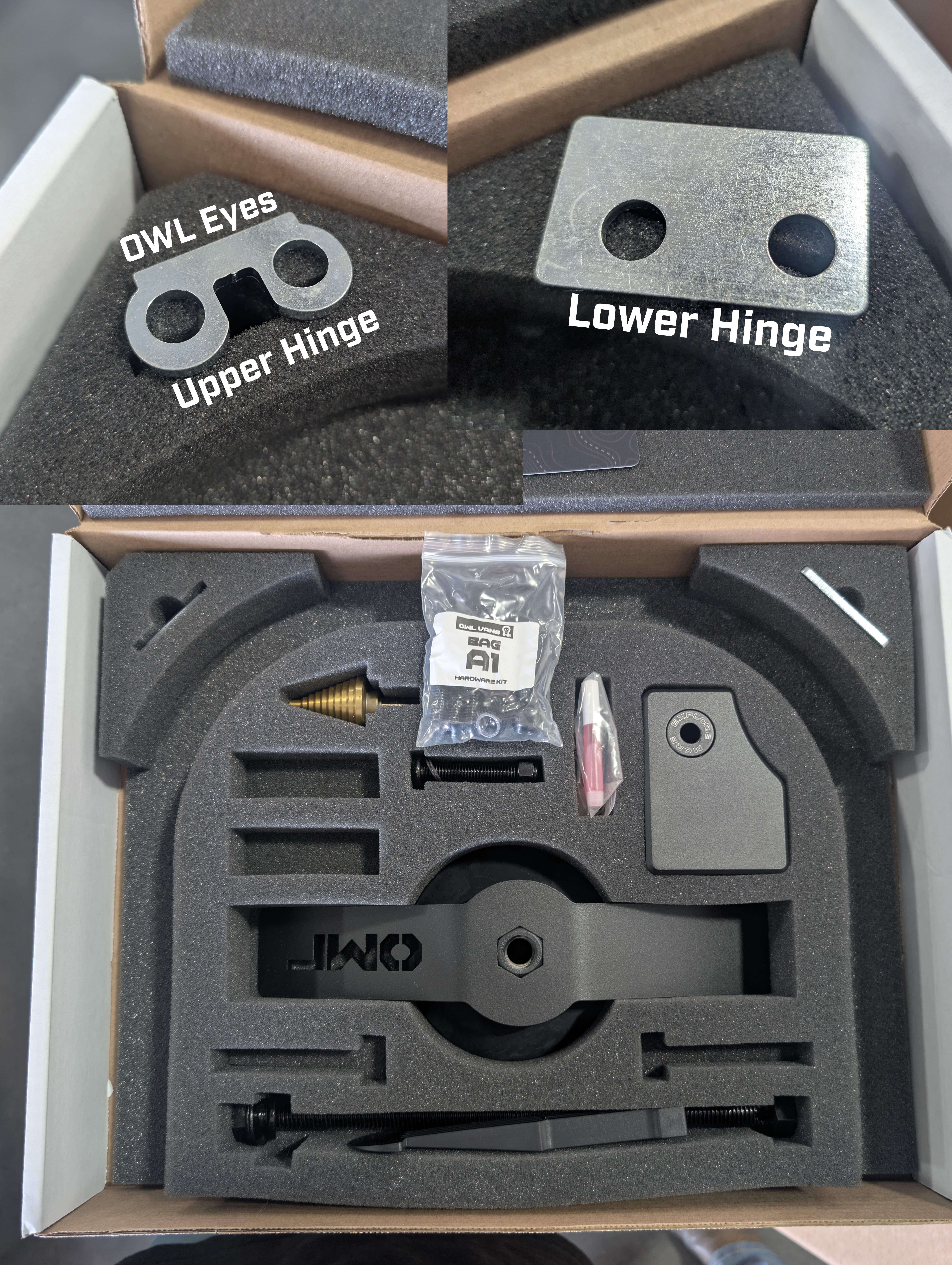

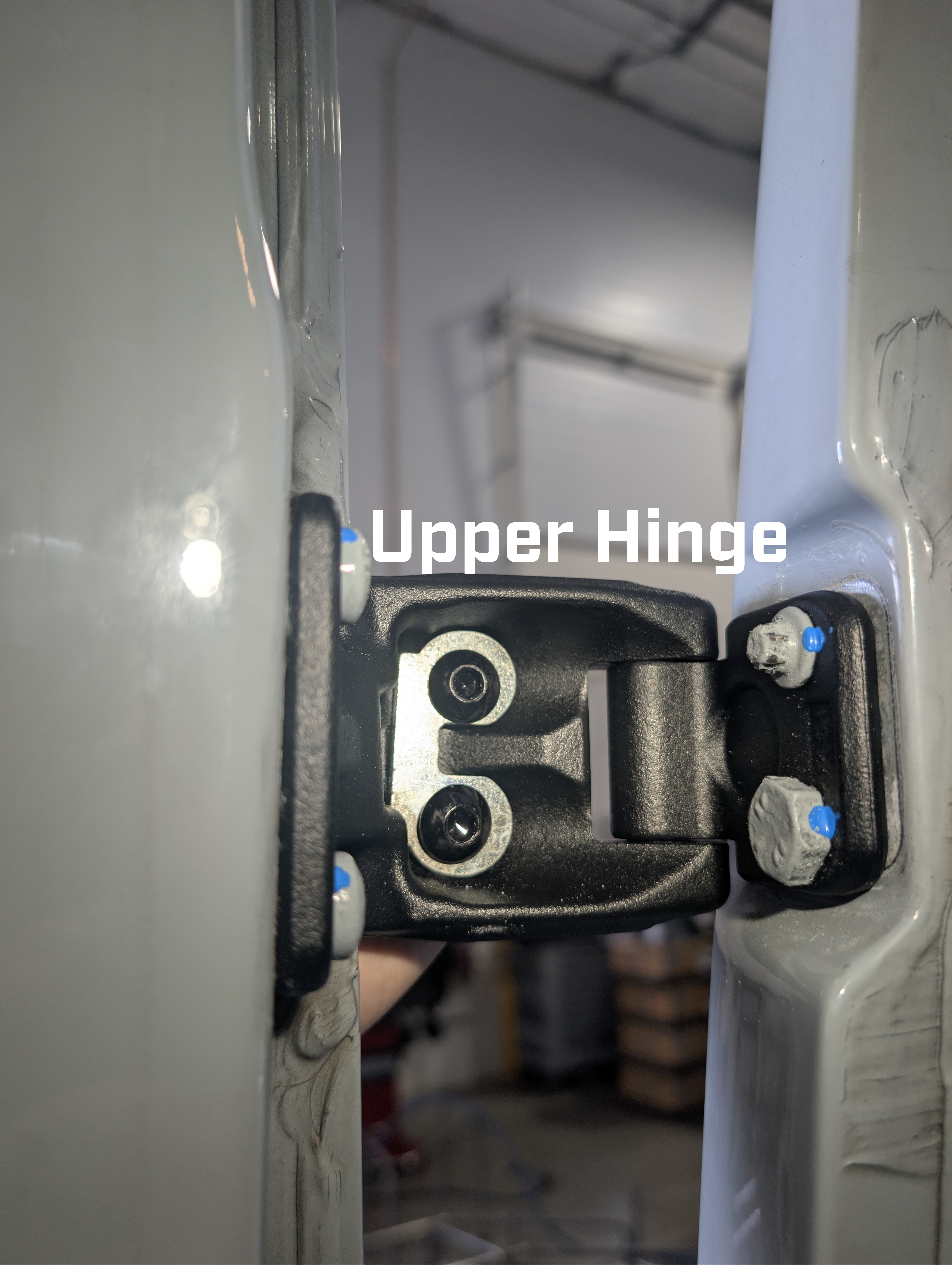

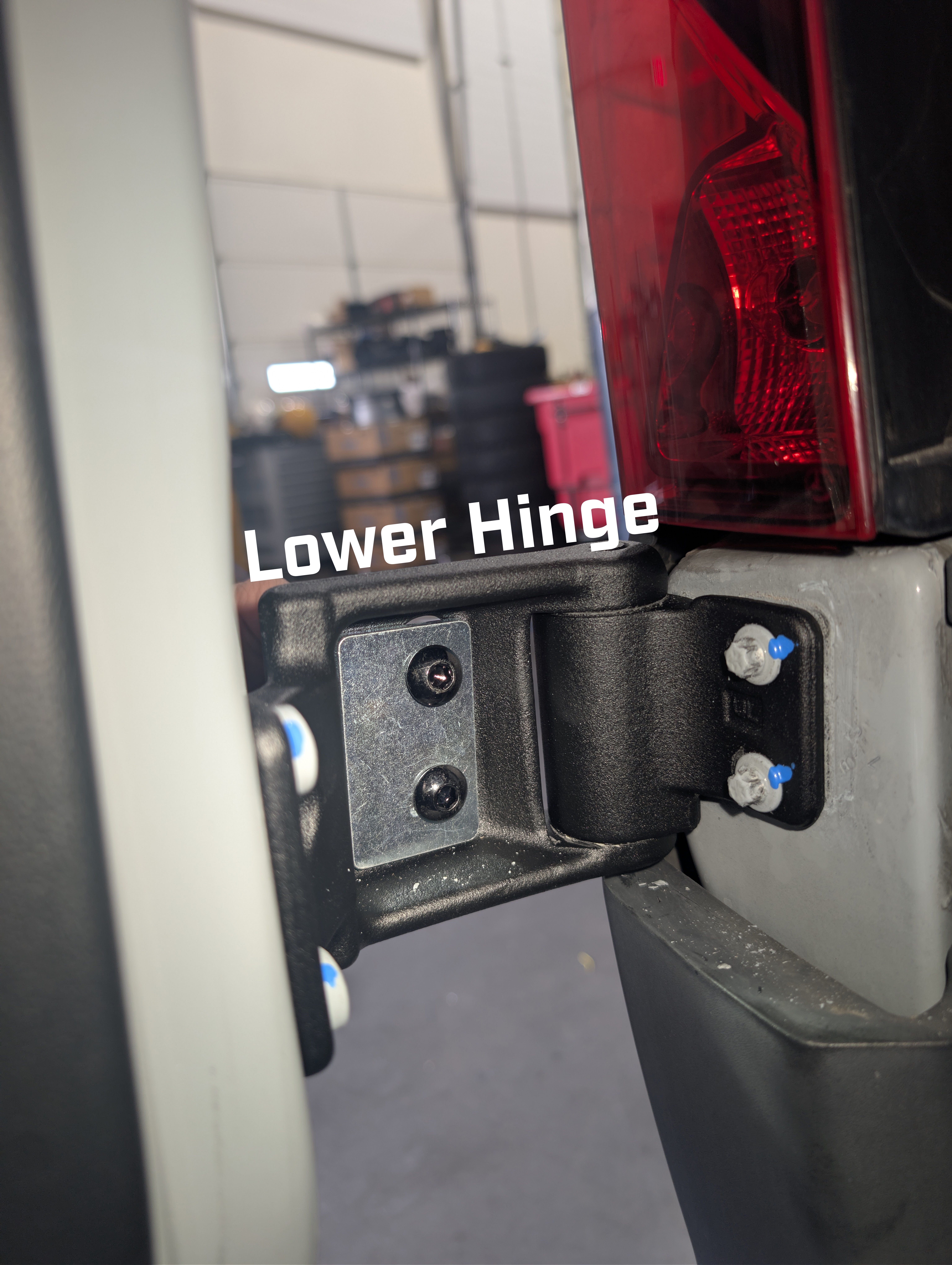

**Owl Eyes-Upper, Rectangle plate-Lower**

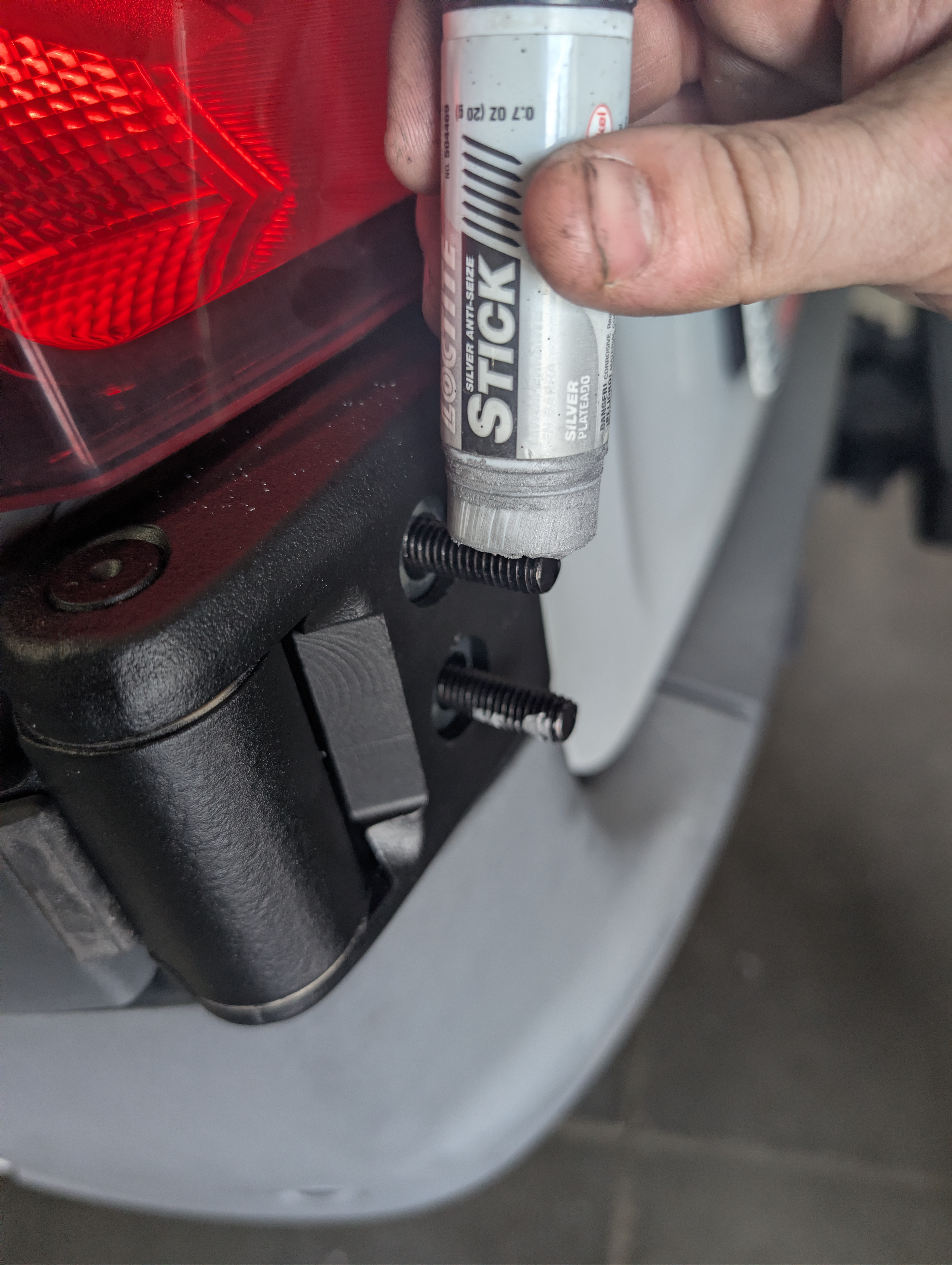

- Apply anti-seize compound to the hinge bolts before installation.

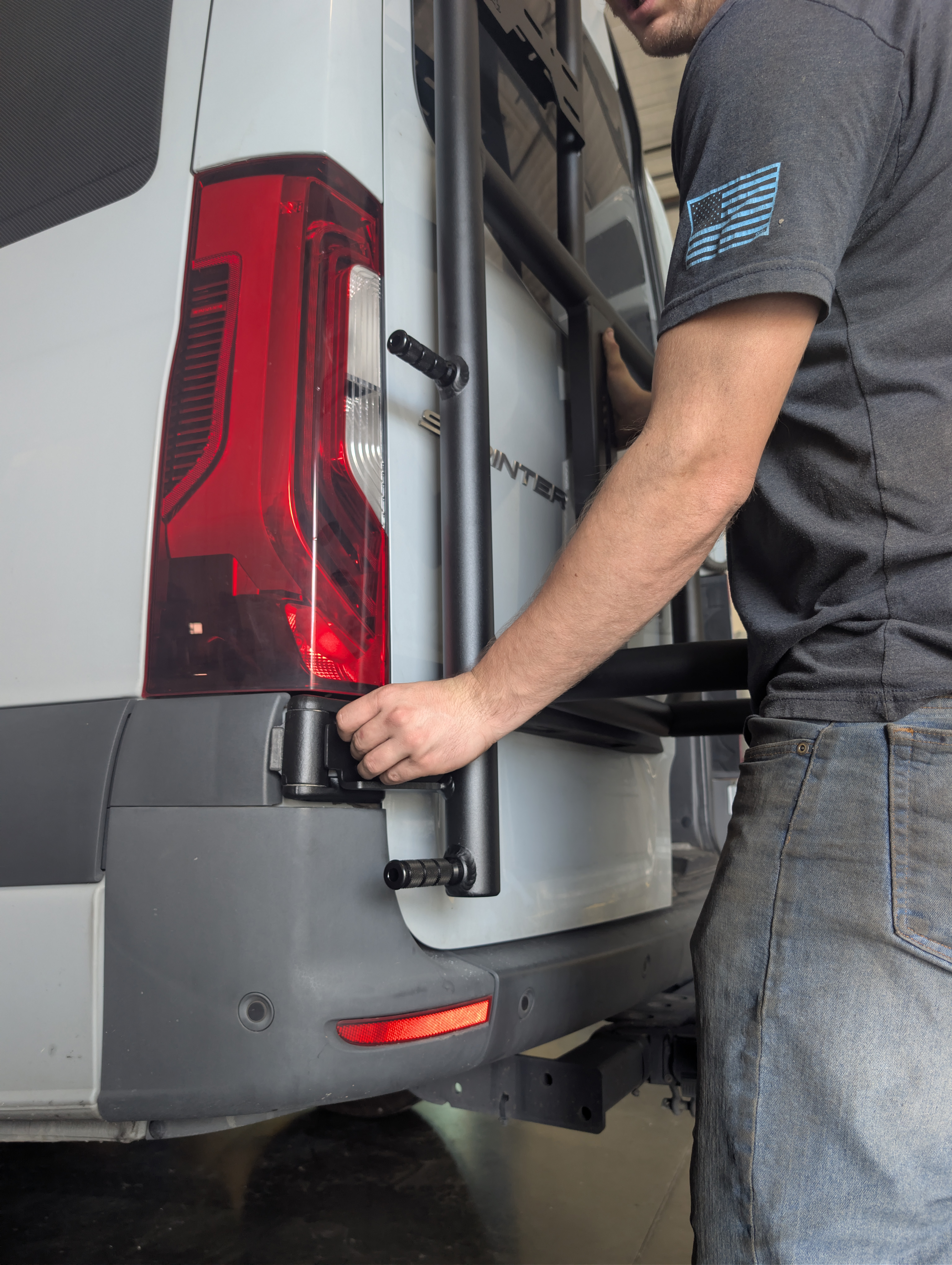

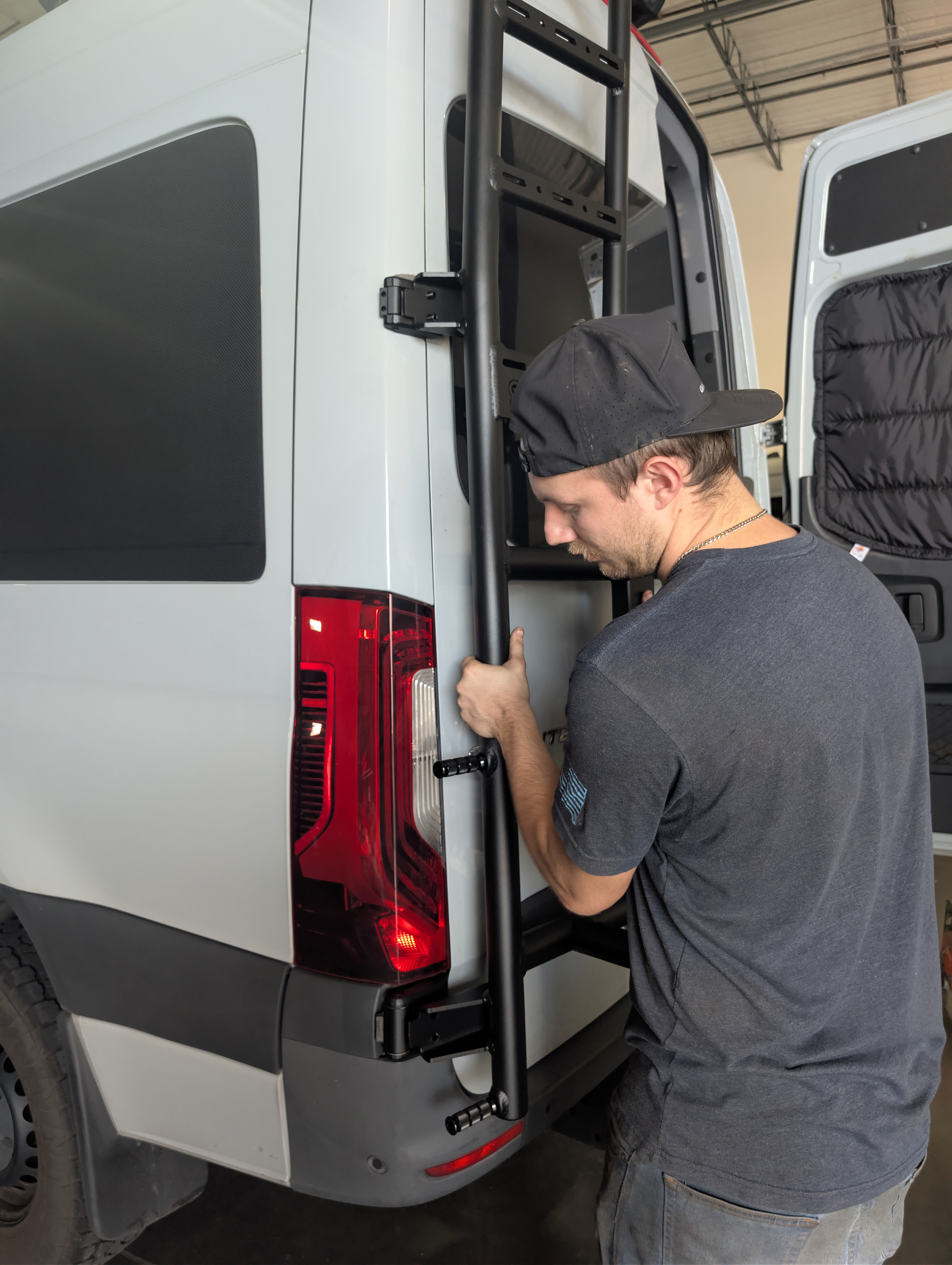

- With assistance if needed, lift the LTC into position and align it with the first and second
mounting-point hinge bolts.
- Install a washer and Nylock nut onto each upper and lower hinge bolt.
Hand-tighten only at this time; do not fully tighten the hardware.

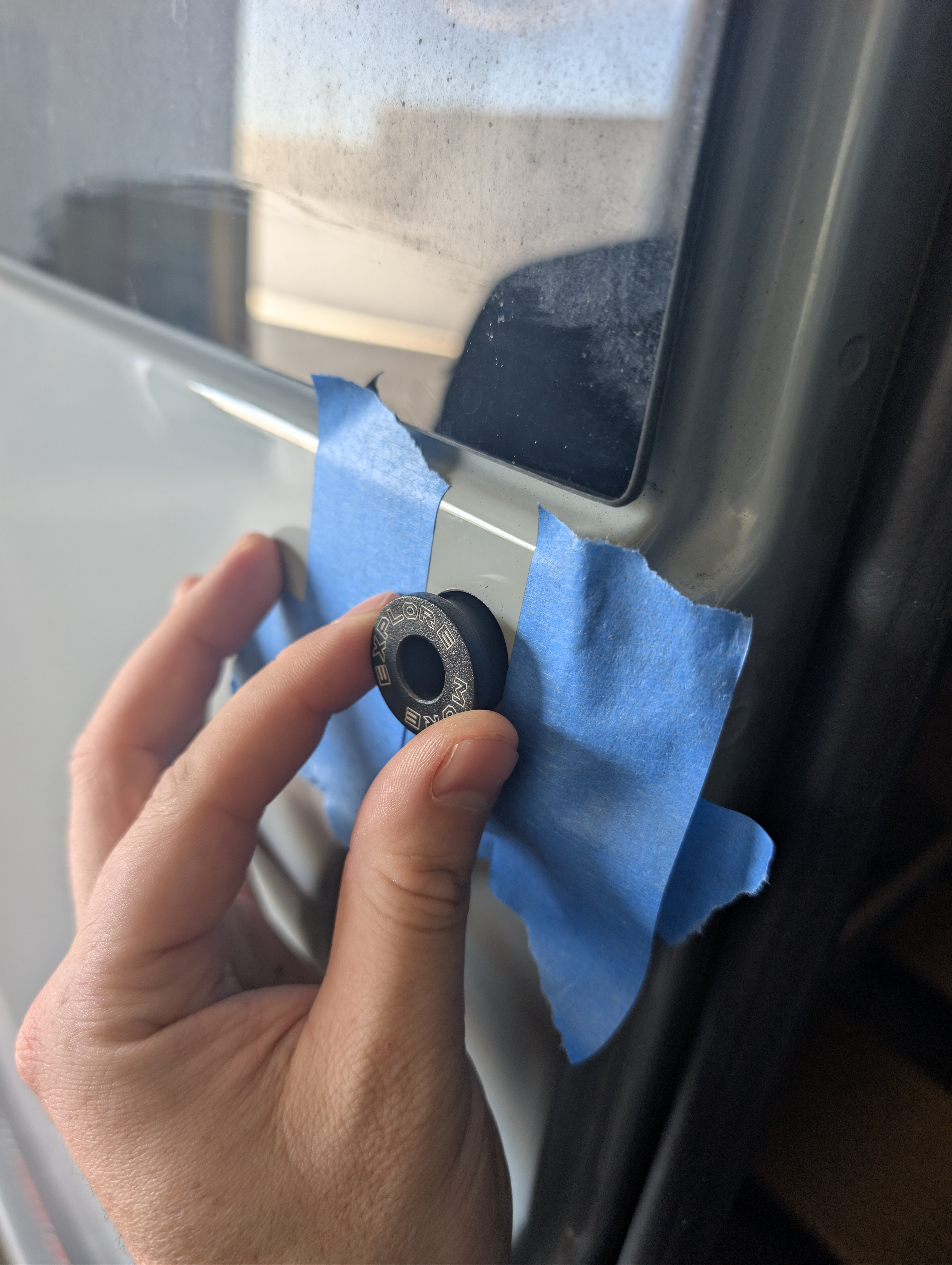

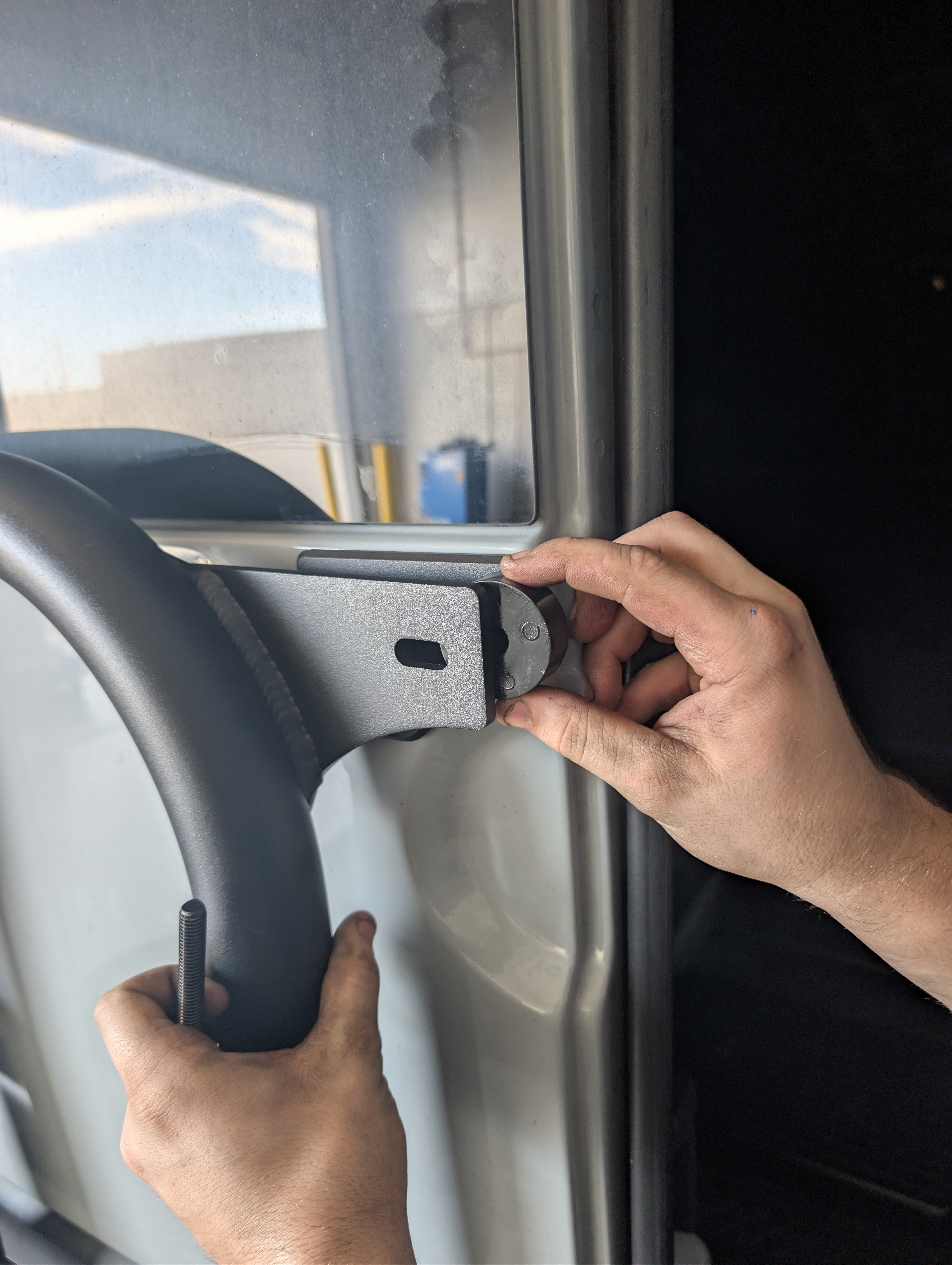

- Install the third mounting-point hardware in the following order: bolt, carrier, bushing, third mounting-point plate, washer, and nut. Hand-tighten only.
- Starting at the lower hinge, apply slight upward pressure to the LTC to align the carrier,
hinges, and mounting points.

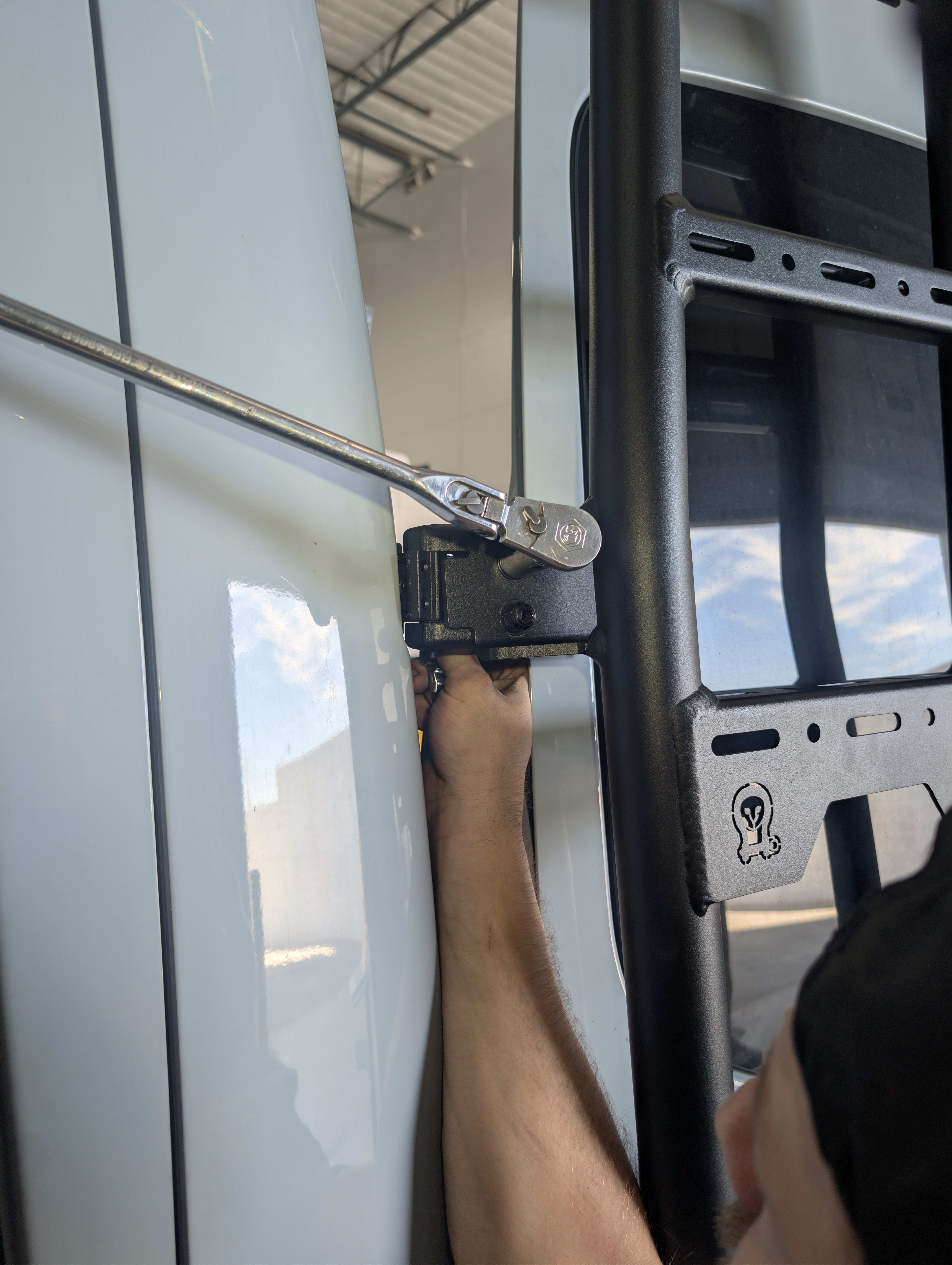

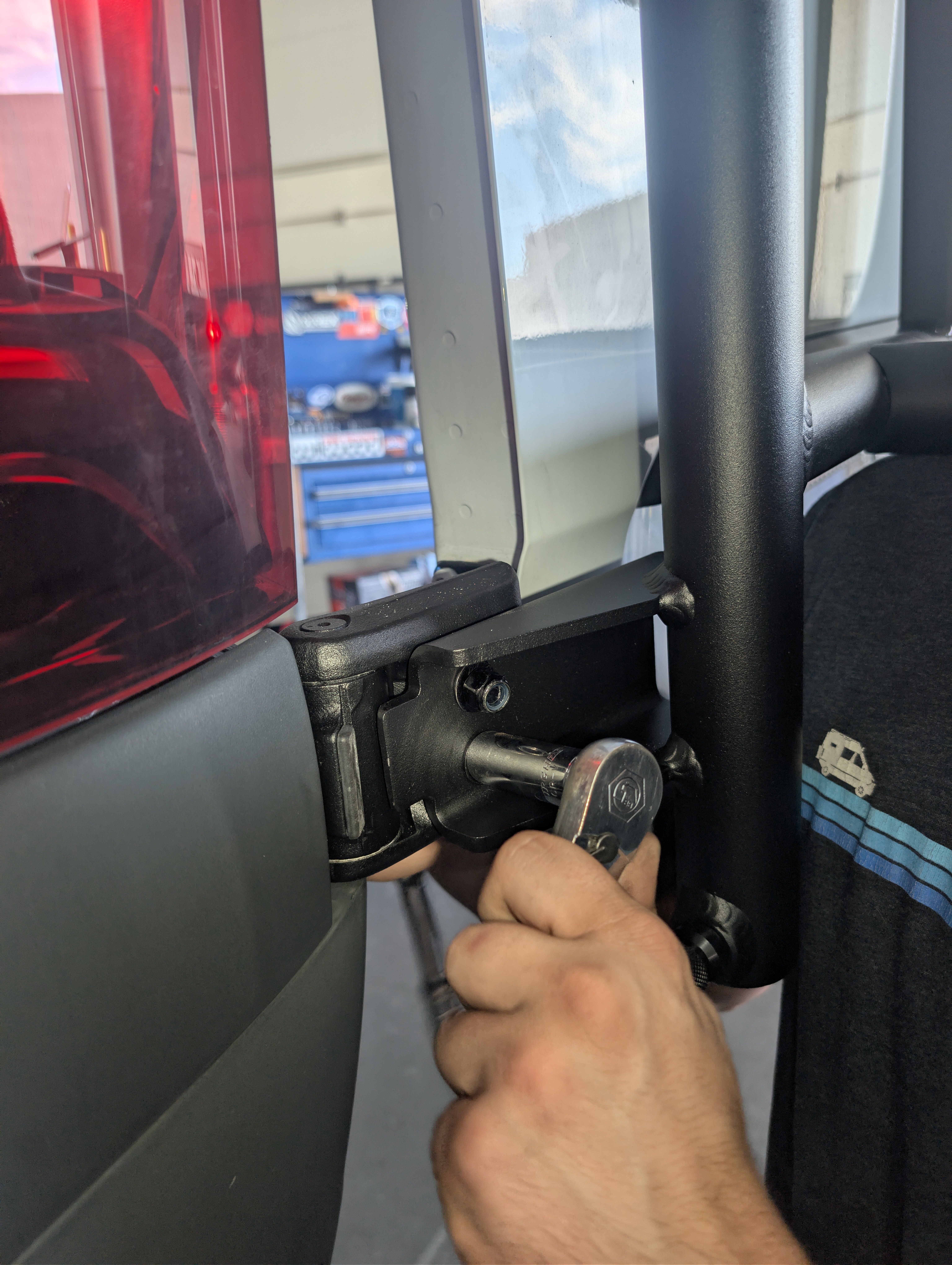

Tighten the hinge hardware from bottom to top using a 9/16-inch socket and 7/32-inch hex
socket.
- Confirm that the bolt threads extend fully through the Nylock portion of each nut.
- Torque the first and second mounting-point hardware to 20 ft-lb.

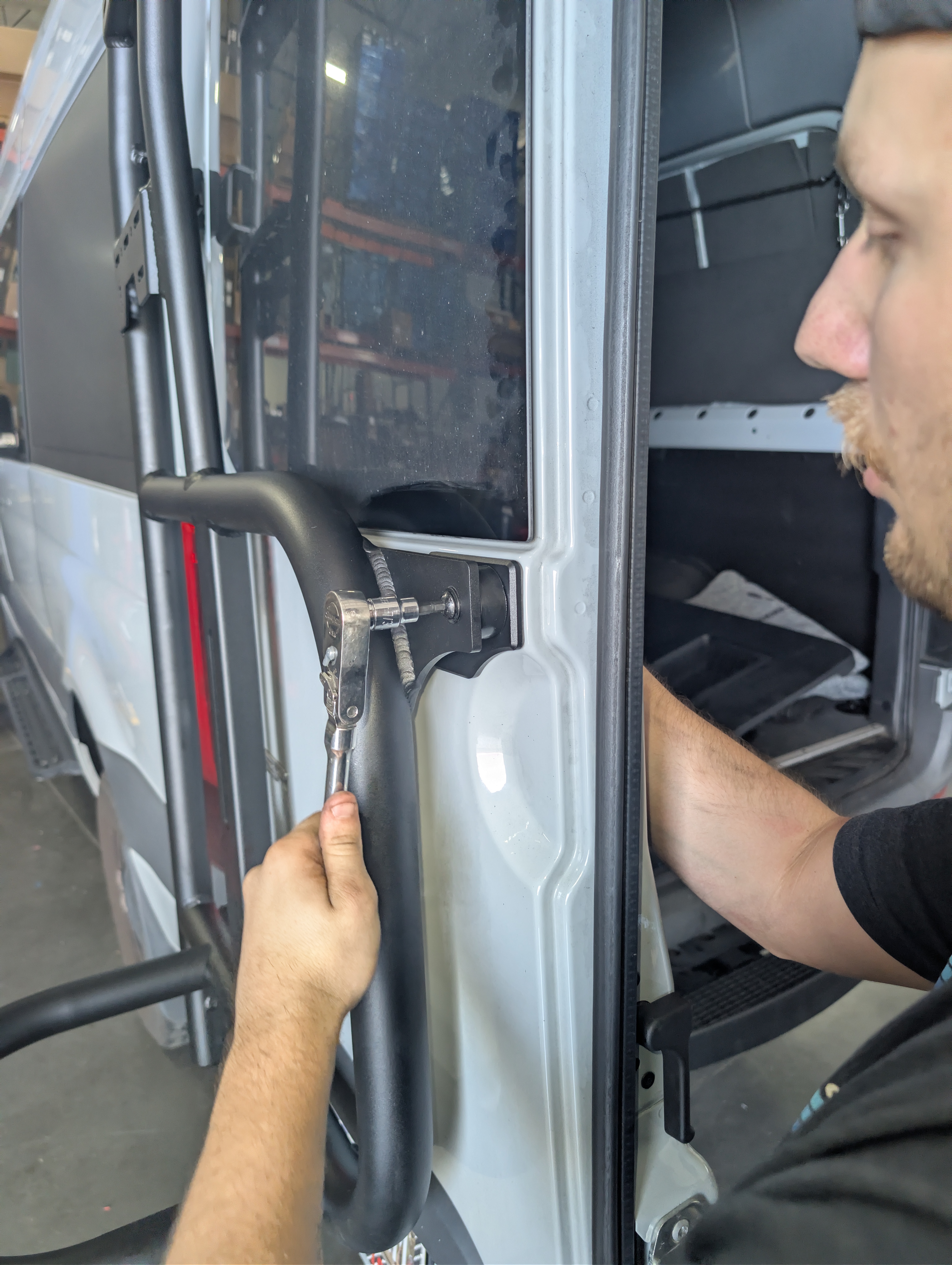

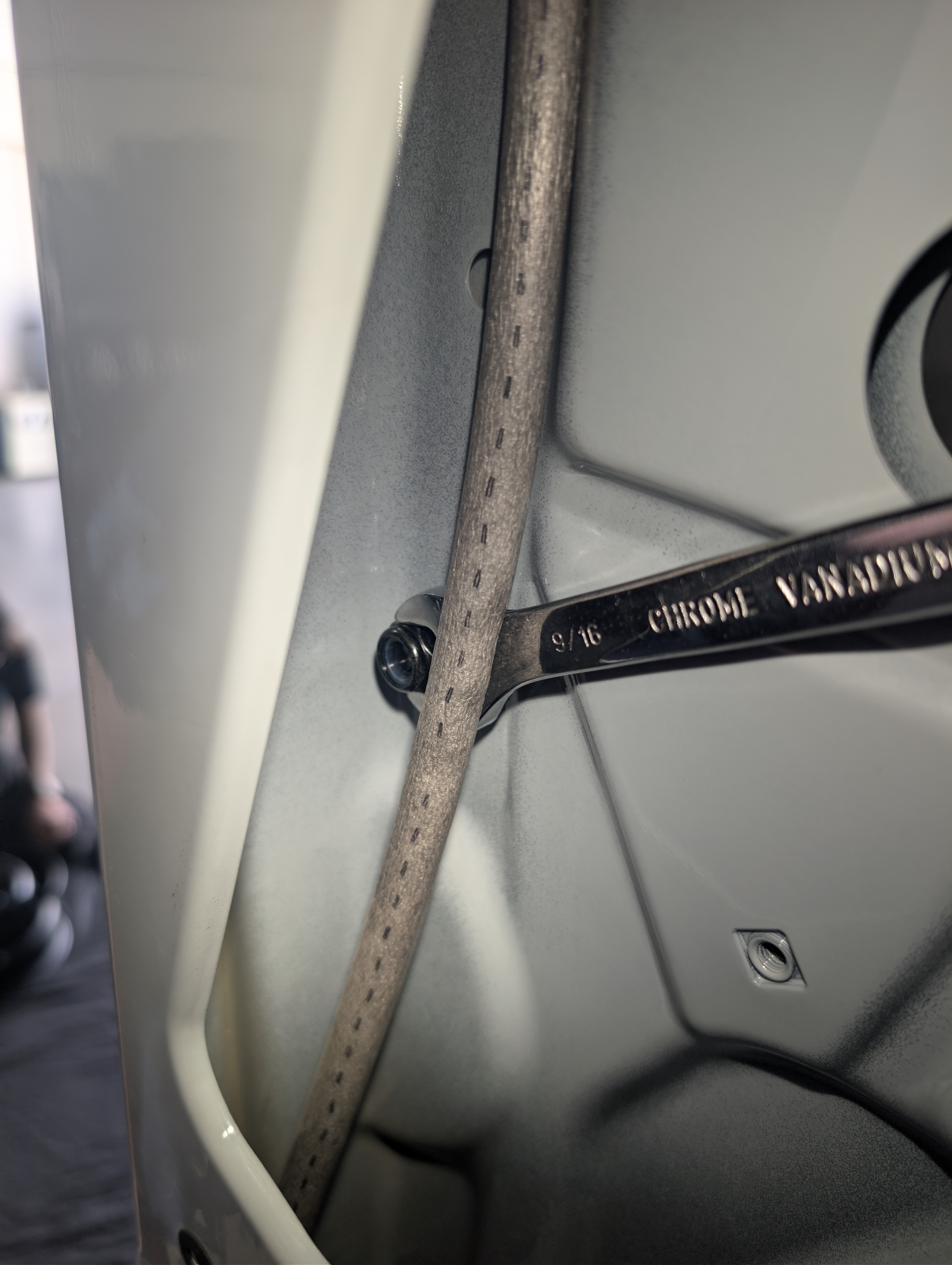

- Tighten the third mounting point using a 9/16-inch box-end wrench on the interior-door nut
and a 7/32-inch Allen socket on the exterior bolt. - Tighten the third mounting point only until the bushing begins to compress.
Do not over-tighten; excessive bushing compression may allow the LTC to contact the rear
door.
- Confirm that the bolt threads extend fully through the Nylock portion of the nut.
- Torque the third mounting-point hardware to 20 ft-lb.
- Reinstall the interior rear-door panel, ensuring every retaining clip is aligned and fully
seated.

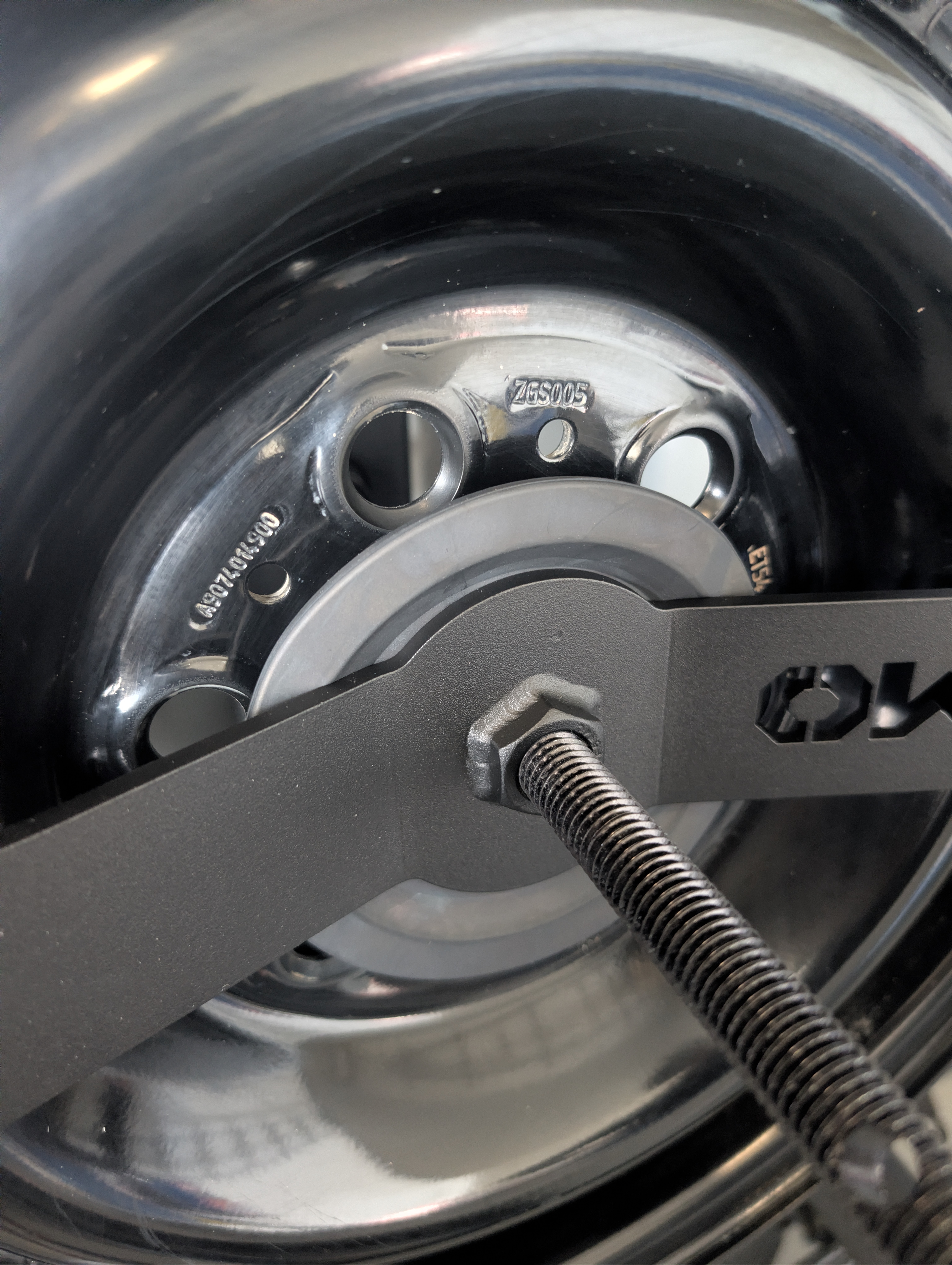

Install the spare-tire stud

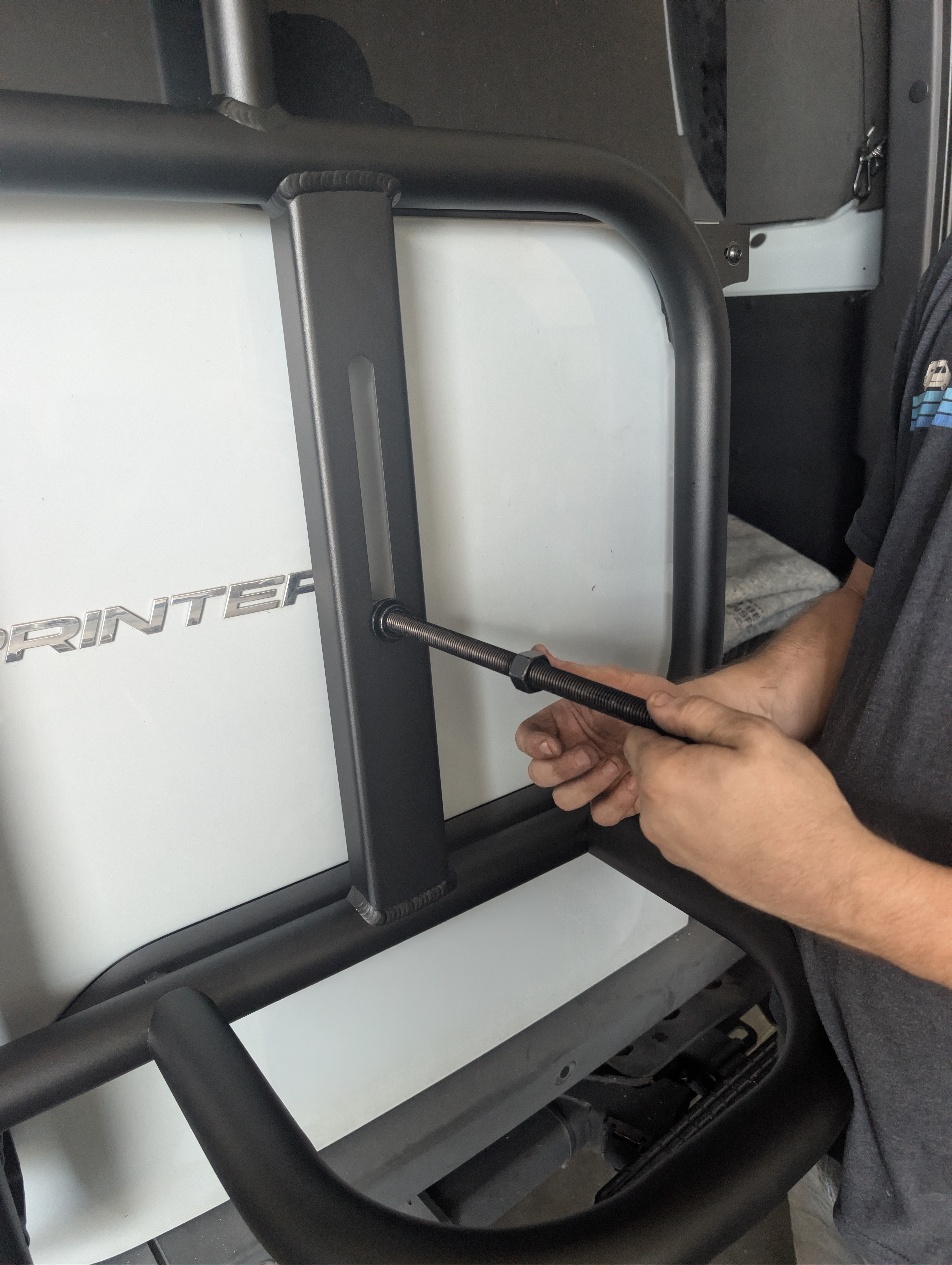

- Install the all-thread stud into the LTC tire mount.
- For best alignment, temporarily place the spare wheel and tire on the carrier before final-

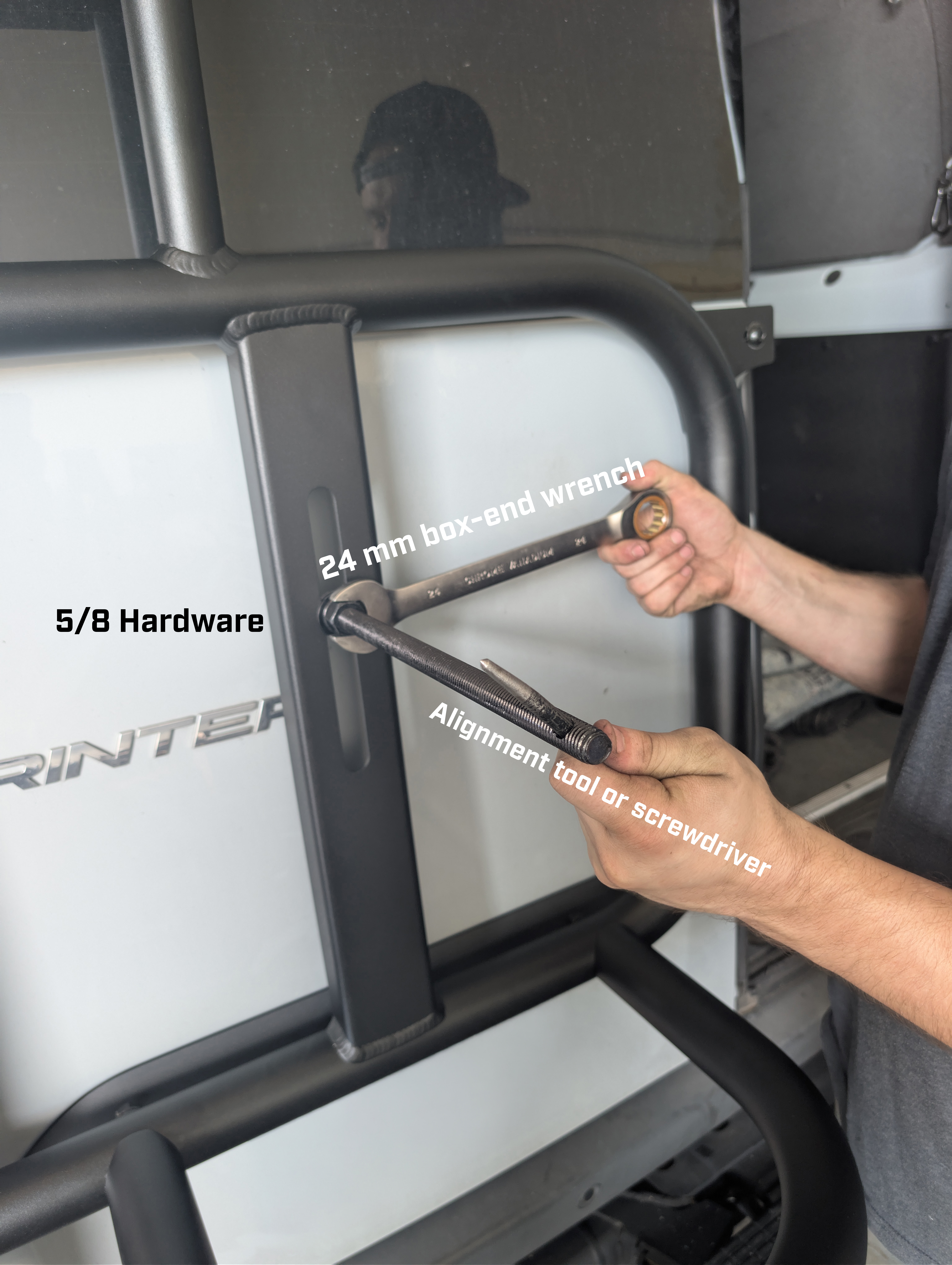

tightening the all-thread. - Use a 24 mm box-end wrench to tighten the all-thread.
Use the supplied alignment tool or a screwdriver to prevent the all-thread from rotating while
tightening.
- Confirm that all Nylock nuts have sufficient thread engagement, with threads extending
through the locking portion of the nut. - Tighten the spare-tire retention hardware.
Final inspection
- Verify that LTC level, straight, and evenly positioned relative to the vehicle body.
- Confirm that all Nylock nuts have adequate thread engagement and that the bolt threads
extend through the locking portion of the nut. - Confirm that every drilled hole has been treated with rust-preventive pain
- Open and close all doors to verify there is no interference with the LTC.
- Recheck all hardware after the first drive and again after approximately 100 miles of use.
Your Installation Is Complete.
