ARROW Pro Series Bump Stop Brackets Installation



Notes

For the most up-to-date and current installation
instructions, please visit our website at
www.owlvans.com

• Please read all instructions carefully before installing
Owl products on your vehicle.

• This is a bolt-on kit designed for easy installation
using basic hand tools.

• This shock kit is fully removable, allowing the vehicle
to be returned to its original stock configuration if
desired.

---

Parts List

2015-Up, Mercedes Sprinter AWD Front Bump Stop Bracket

---

Tools Needed

1. Quality jack and two jack stands

2. Basic hand tools:

• Wrench and socket set, including:
• Metric sizes: 13mm, 16mm, 17mm

---

Installation

These instructions show installation on the driver’s (left-hand)
side. Passenger side installation is similar; any differences will
be noted in the steps.

1.
Loosen lug bolts then safely support the vehicle on an
appropriate lift or jack stands so the rear suspension can hang
freely. Ensure the support method follows the vehicle
manufacturer’s specifications.

2.
With the suspension supported, remove the front wheels and
tires. Factory lug bolts typically have a 19mm head.

3.
Locate the OEM bump stop and remove the M8 nut securing
it to the bump stop mount using a 13mm socket or wrench.
Once the nut is removed, remove the bump stop or
aftermarket jounce from the vehicle.

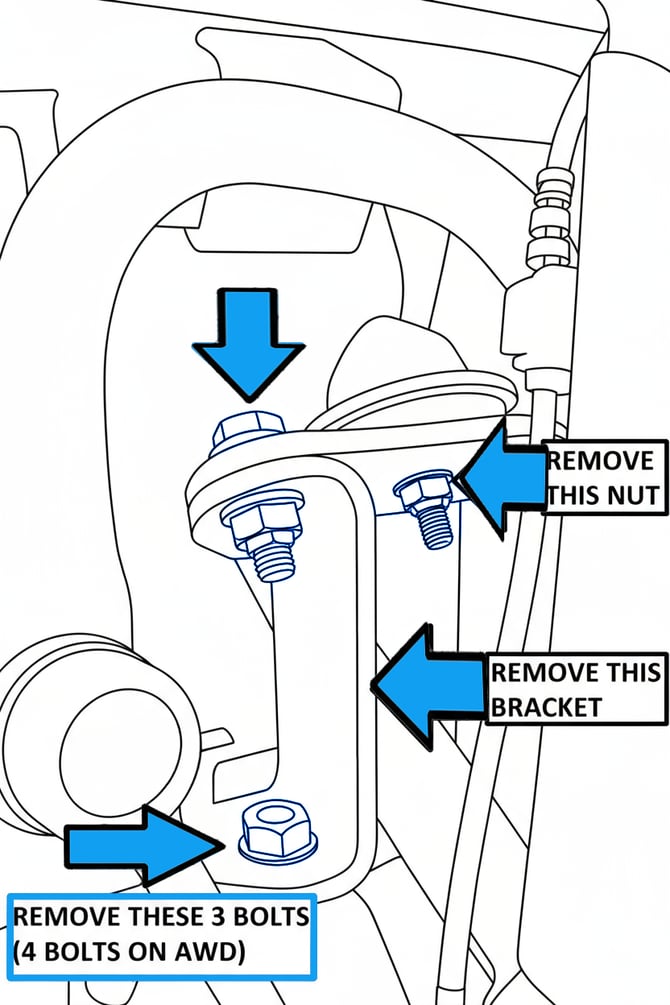

4.
Locate and remove the M10 bolts securing the OEM front
gusset bracket to the lower control arm.

• 2015–2022 4x4 chassis: Three (3) bolts secure the bracket.
• 2023+ AWD chassis: Four (4) bolts secure the bracket.

After removal, retain all OEM hardware, as it will be reused during
reinstallation.

See image below for reference.

5.
Position the new Owl Front Bump Stop Brackets in the same
mounting location as the OEM gusset brackets removed in the
previous step. The brackets are side-specific and will only
install in one orientation.

Refer to the photo below for correct positioning and alignment.

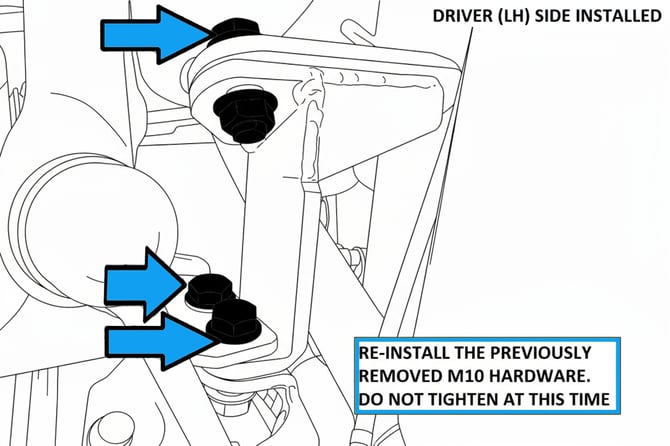

6.
Reinstall the OEM M10 hardware into the same mounting
locations used previously. Start all bolts by hand, but do not fully
tighten at this stage — leave the hardware loose to allow for proper
bracket alignment during final installation.

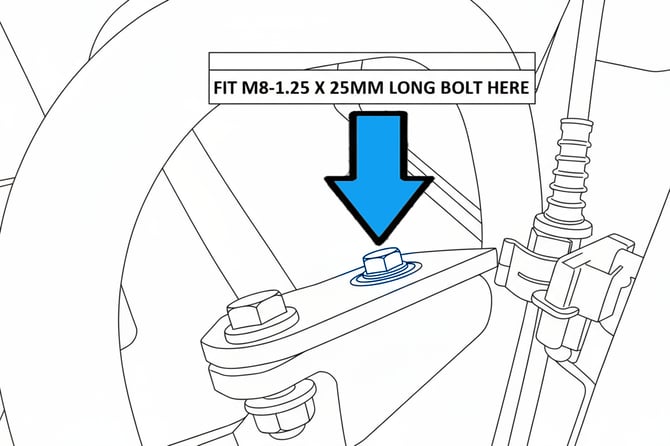

7.
Insert the included M8-1.25 x 25mm bolt into the outer
hole used for the bump stop or jounce mount. This bolt is
placed temporarily to help maintain proper alignment of
the jounce mounting hole during installation.

8.
With the M8 alignment bolt in place, snug all M10
hardware to hold the Owl Front Bump Stop Brackets
securely in position. Do not fully torque at this time—final
tightening will occur once all components are aligned.

9.
With the M10 hardware snug, reinstall the Owl Bump Stop
Torque all hardware to the following specifications:

• M10 hardware: 43 ft-lbs (58 N·m)
• M8 jounce nut: 15 ft-lbs (20 N·m)

Note: On AWD models, it may be easier to reinstall taller aftermarket jounces with the wheels reinstalled and the suspension slightly compressed from full droop. If installing an Owl Bump Stop use the included M8-1.25 x 25mm bolt from this kit for reattachment

10.
Repeat the installation process on the passenger side of
the vehicle if it has not already been completed. Ensure all
hardware is torqued to specification and components are
properly aligned before final inspection.

11.
Reinstall the wheels and tires, then torque all lug bolts or
nuts to the wheel manufacturer’s specifications. Verify
proper wheel seating and ensure all fasteners are evenly
torqued in a star pattern.

12.
After 100 miles, recheck bolt torques.

---

Congrats!
Your Installation is complete.

---
